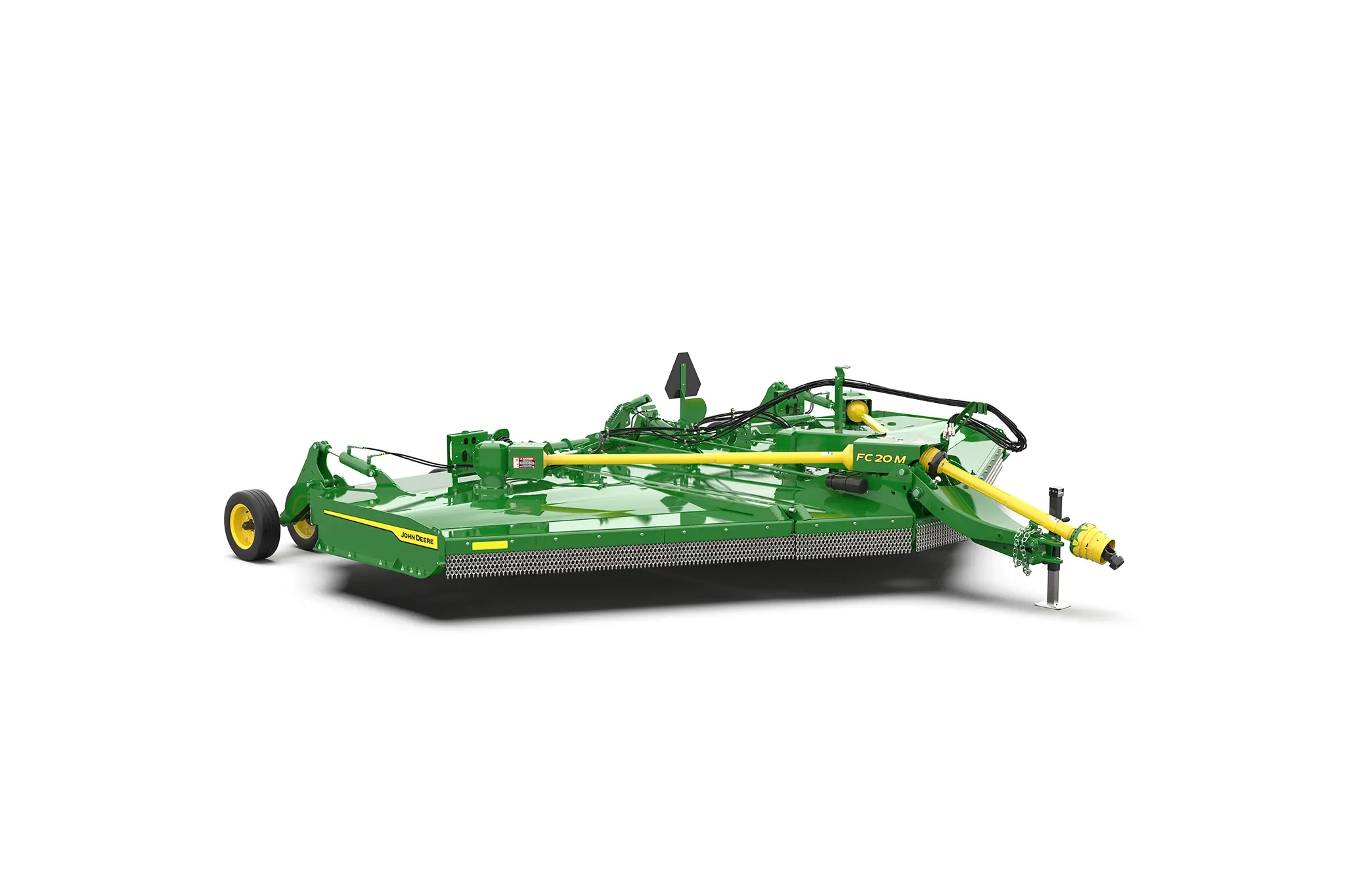

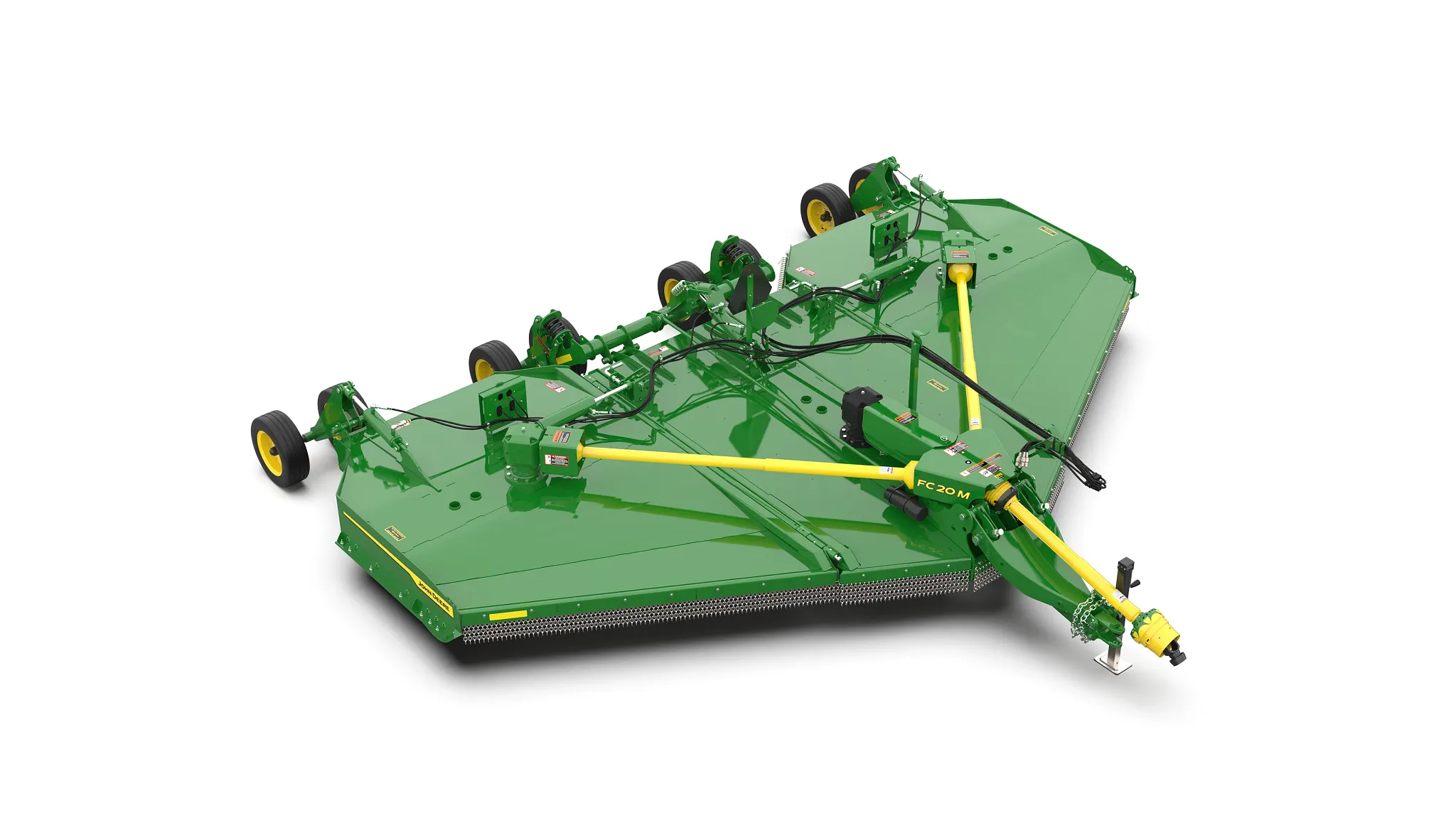

Studio rendering of FC20M

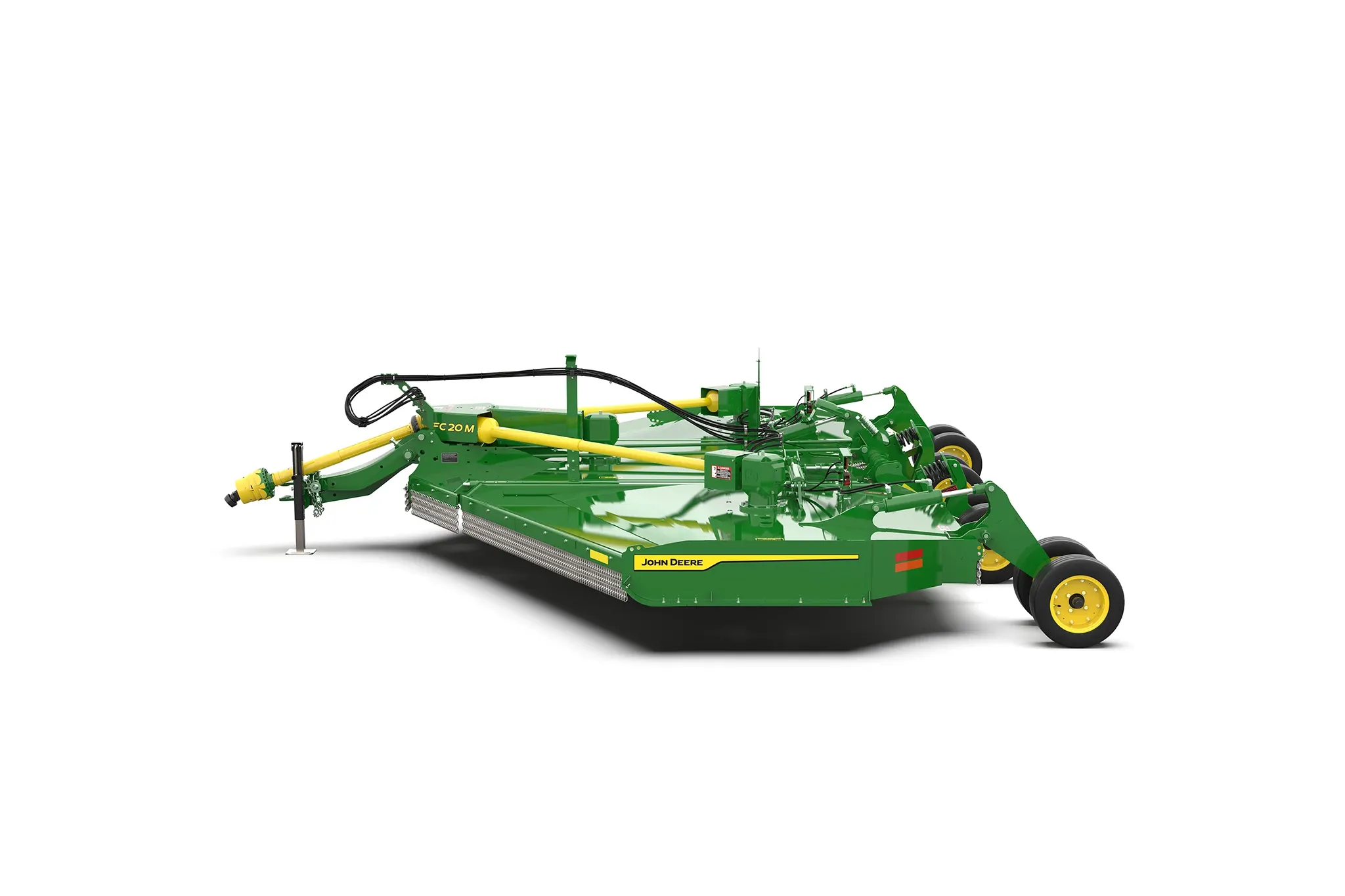

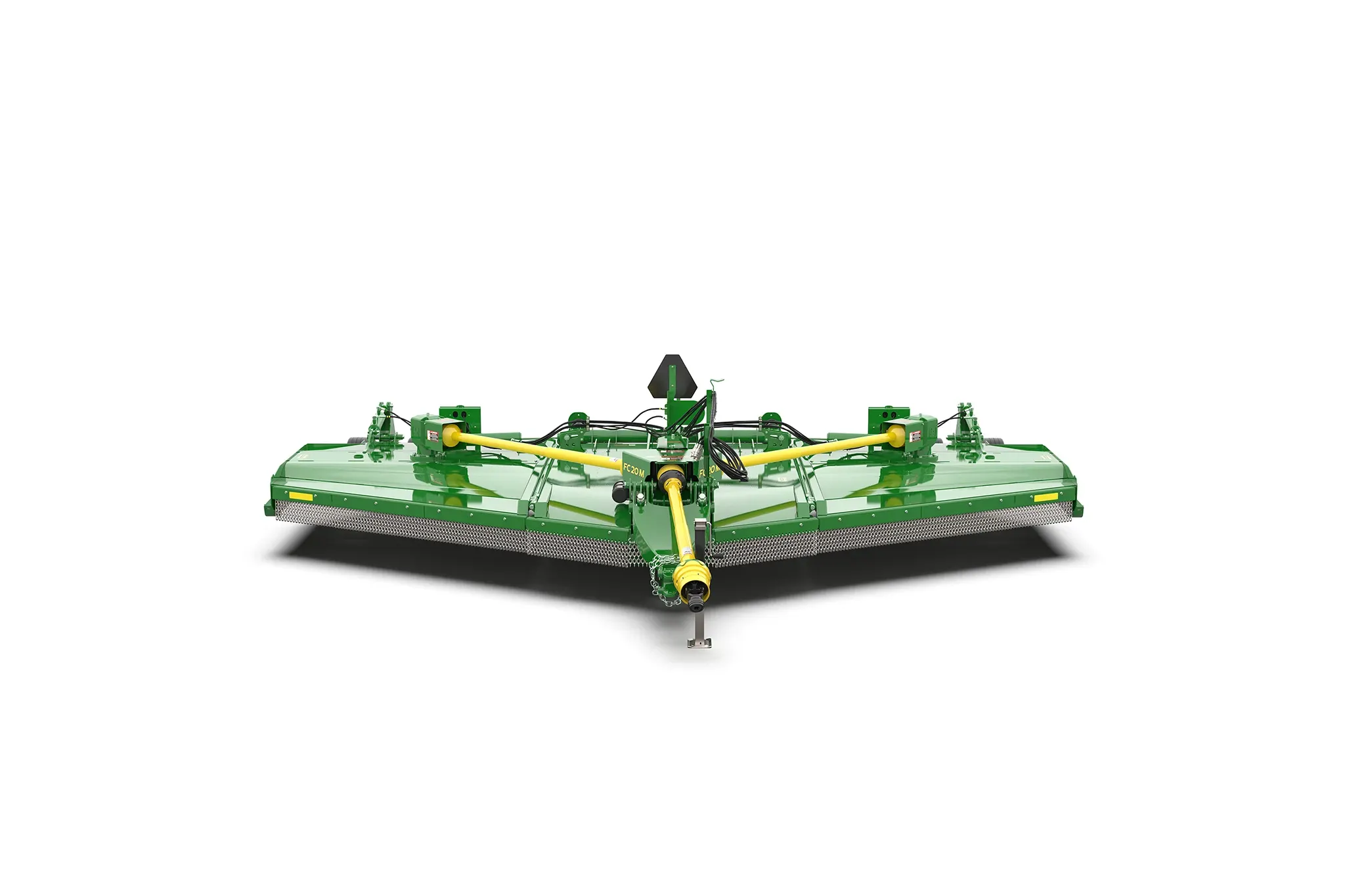

Studio rendering of FC20M

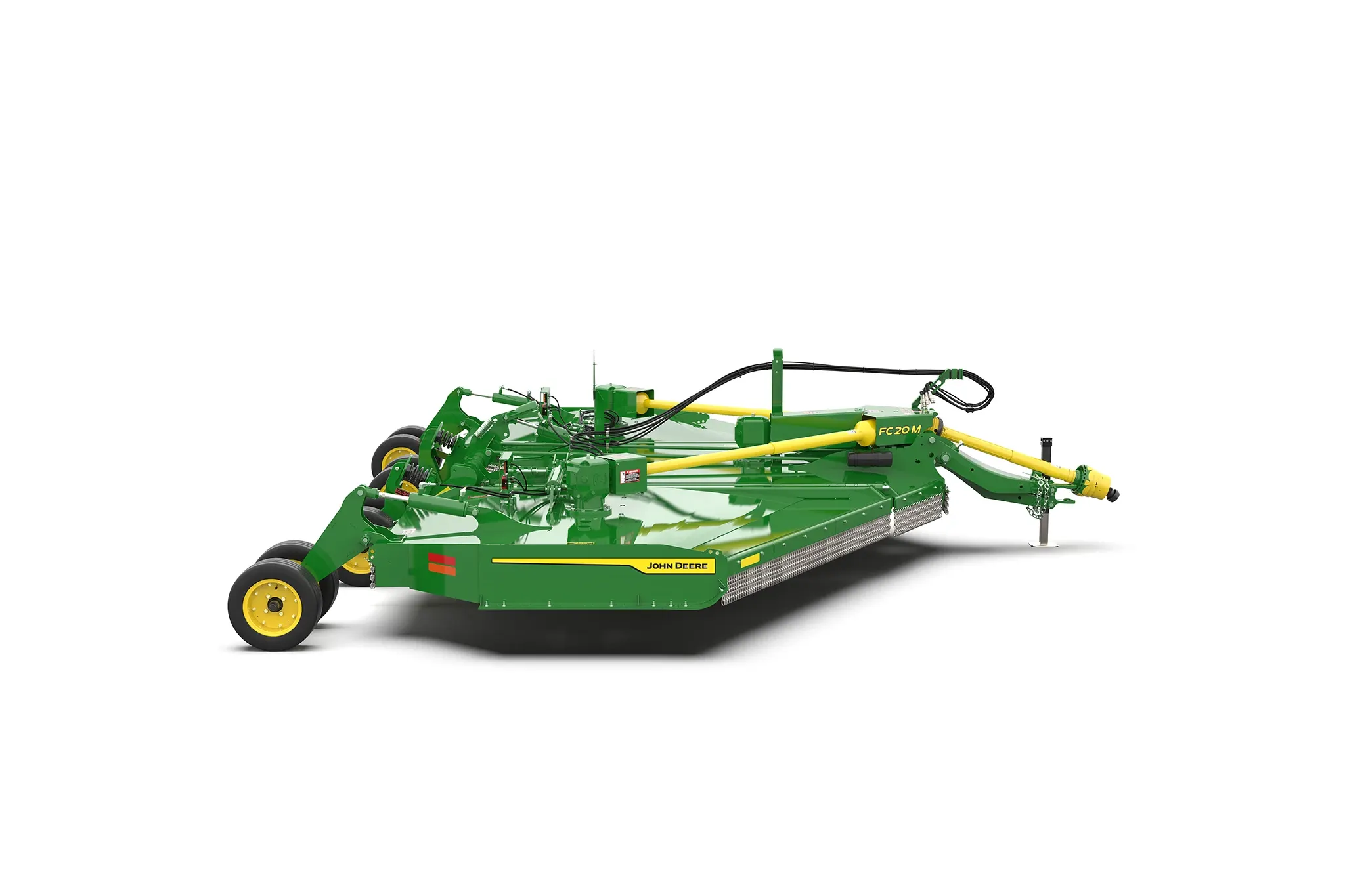

Studio rendering of FC20M

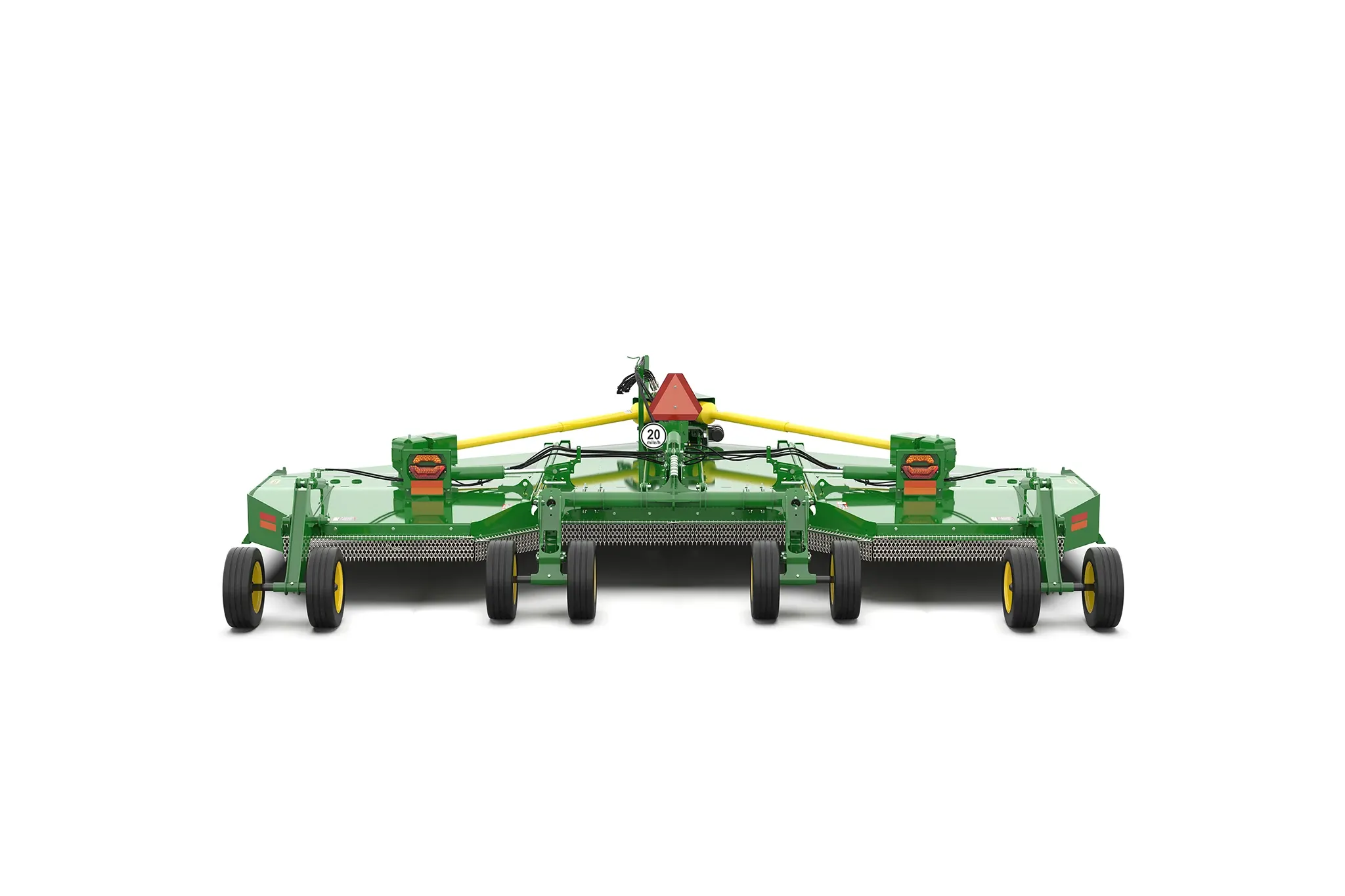

Studio rendering of FC20M

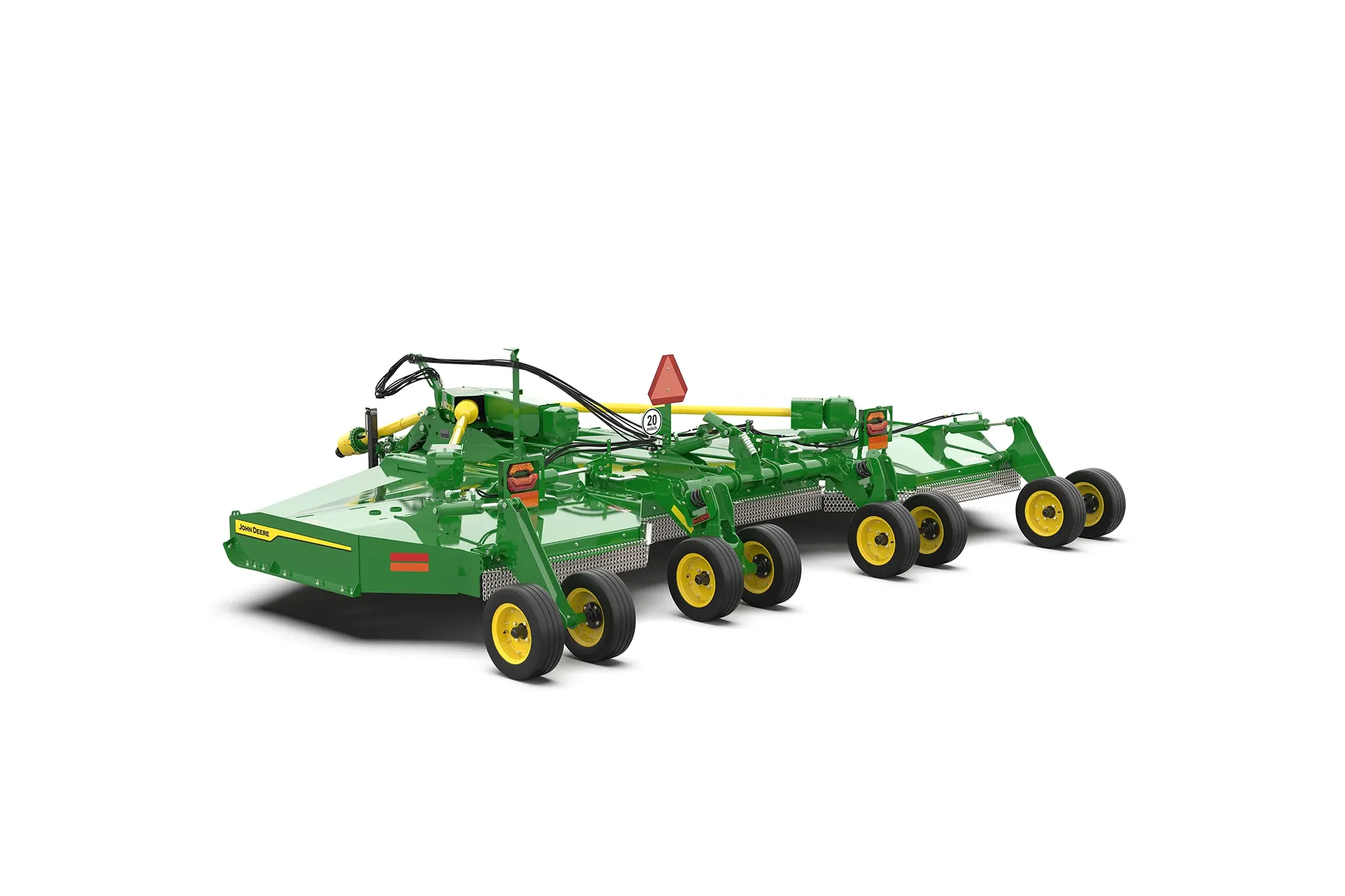

Studio rendering of FC20M

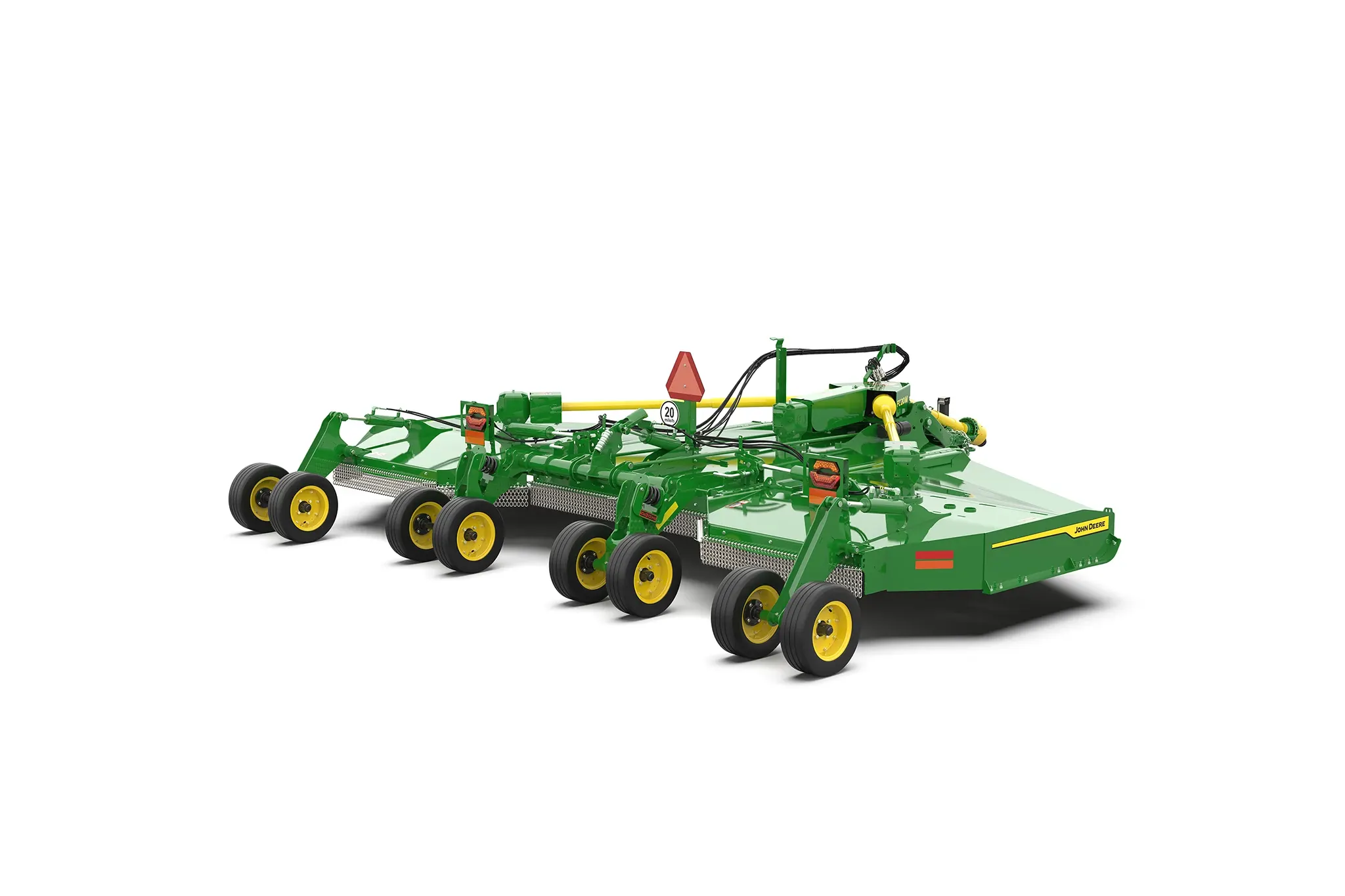

Studio rendering of FC20M

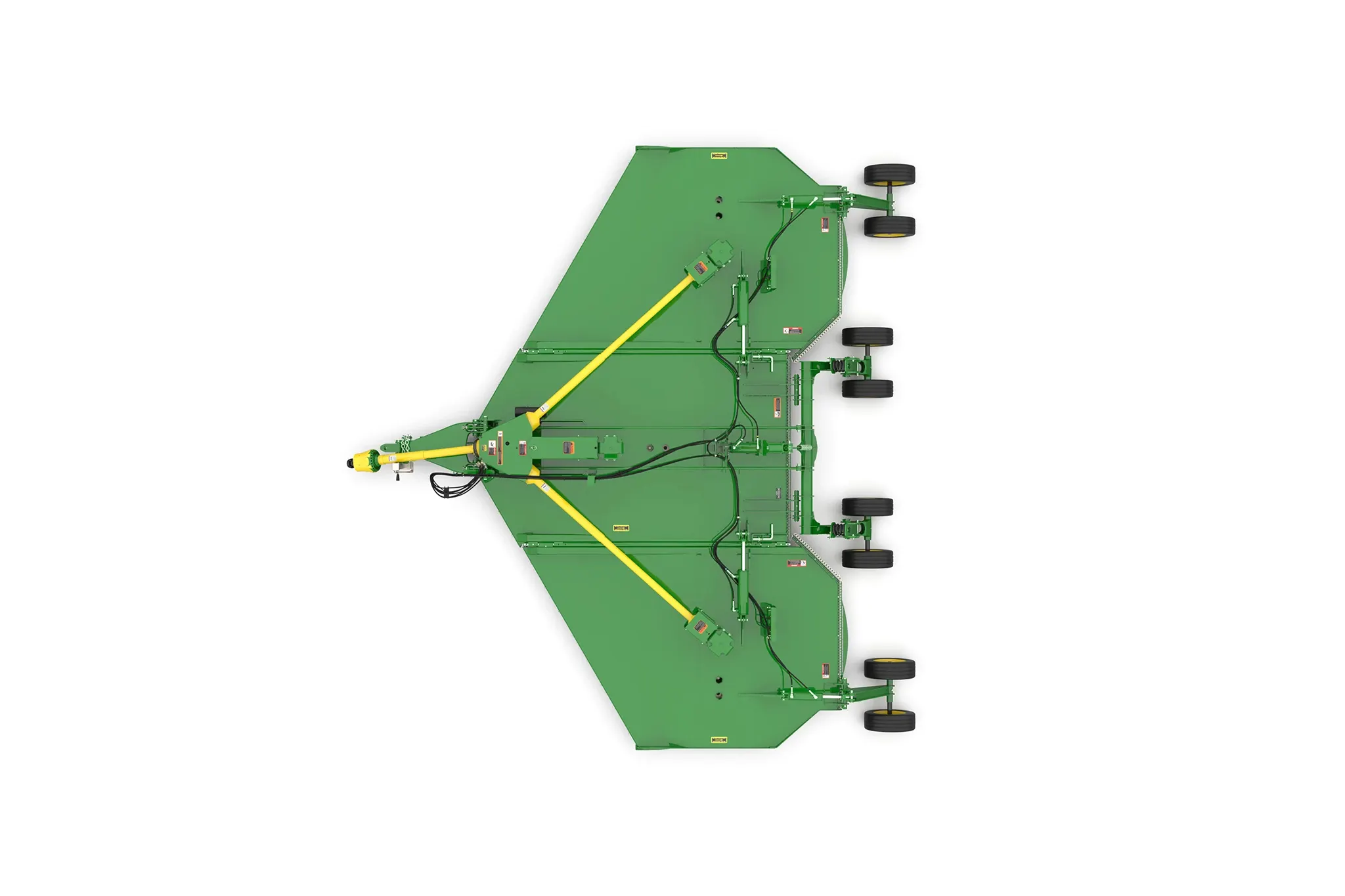

Studio rendering of FC20M

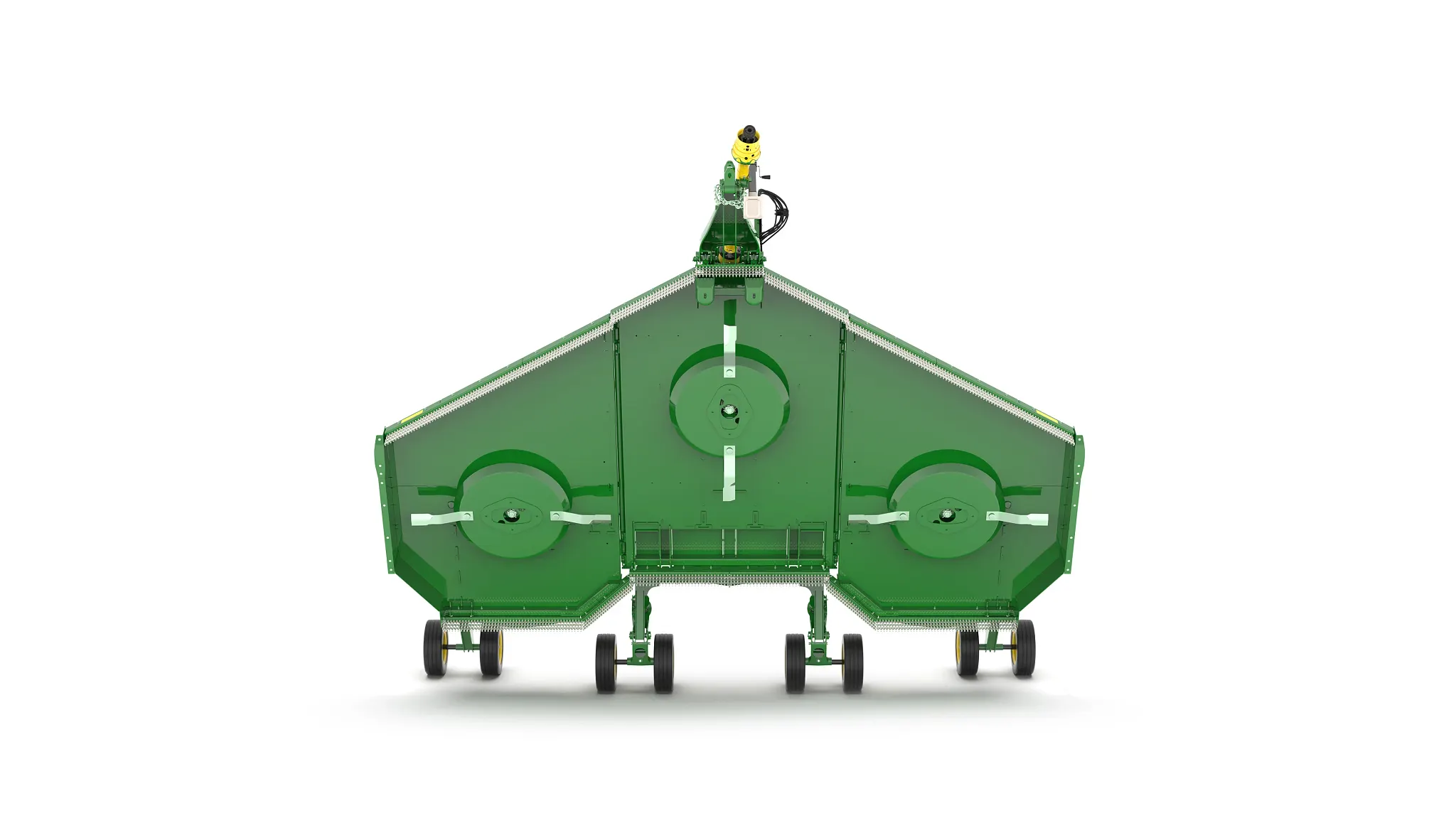

Studio rendering of FC20M
Studio rendering of FC20M
Studio rendering of FC20M
Studio rendering of FC20M

John Deere FC20M

Flex-Wing Rotary Cutter

The FC20M Flex-Wing Rotary Cutter delivers unmatched durability and efficiency, designed with advanced features to tackle the toughest field conditions while maintaining exceptional cutting performance for large-scale agricultural operations.

Product Features:

  • 20-ft Cutting Width
  • 540 or 1000 PTO rpm
  • Different Blade Configuration Options
  • Inward or Outward Rotation

Specifications

Connecting Driveline Protection No-seize, slip-clutch driveline
Main Driveline Size CV ASAE Category 5, splined telescoping profiles
Connecting Driveline Size ASAE Category 4, splined telescoping profiles

Cutting Width 6.1 m
Cutting Width 20 ft
Cutting Capacity (Diameter) 3 in.
Cutting Chamber Depth 25.4 cm
Cutting Chamber Depth 10 in.
Cutting Height 2.54-45.5 cm
Cutting Height 1-18 in.
Cutting Capacity (Diameter) 7.6 cm

Tractor PTO 540, 1000 rpm
Tractor PTO HP Range 56 kW
Tractor PTO HP Range 75 hp

Center Horsepower Rating - Continuous 75 kW
Outer Horsepower Rating - Peak 161 kW
Transfer Horsepower Rating - Peak 224 kW
Outer Horsepower Rating - Continuous 75 kW
Center Horsepower Rating - Peak 216 hp
Transfer Horsepower Rating - Continuous 250 hp
Number 4
Center Horsepower Rating - Continuous 100 hp
Outer Horsepower Rating - Peak 216 hp
Transfer Horsepower Rating - Peak 300 hp
Outer Horsepower Rating - Continuous 100 hp
Center Horsepower Rating - Peak 161 kW
Transfer Horsepower Rating - Continuous 186 kW

Blade Tip Speed - 1000 RPM 272.30972 fps
Blade Holder Type Round pan stump jumper for blade carrier protection against obstruction damage, Option of double blade bar for extra shredding
Blade Tip Speed - 1000 RPM 83 m/s
Overlap 152 mm
Overlap 6 in.
Thickness 0.5 in.
Thickness 13 mm
Type Suction
Width 4 in.
Width 102 mm
Blade Tip Speed - 540 RPM 268.044628 fps
Blade Tip Speed - 540 RPM 81.7 m/s

Transport Width (At Wing Wheels) 3.3 m
Approximate Weight 2950 kg
Side Skirt Thickness 0.24 in.
Overall Length 5.7 m
Deck Type Double deck in cutting chamber
Lower Deck Thickness 10 gauge
Upper Deck Thickness 11 gauge
Overall Width 20.6 ft
Deck Shape Smooth top deck
Lower Deck Thickness 0.135 in.
Upper Deck Thickness 0.12 in.
Approximate Weight 6503 lb.
Transport Width (At Wing Wheels) 11 ft
Side Skirt Thickness 6 mm
Overall Length 18.7 ft
Overall Width 6.3 m
Hinges Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins
Upper Deck Thickness 3 mm
Side Skirt Thickness 3 gauge
Lower Deck Thickness 3.4 mm

Wing Lift Two SCV connected to the tractor (machine height and wing lift) Simultaneous wing operation
Wing Flex For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Wing-Leveling Adjustment Adjustable threaded clevis on wing lift cylinders
Type - Option 2 4-bolt, 16PR severe-duty ag: 21x7x12 4-bolt, 16PR severe-duty ag foam filled: 21x7x12
Row Width Adjustment Yes
Suspension Coil Spring suspension in center axle
Type - Option 1 4-bolt, laminated: 21x5.25x9

Rear Single-row chain guard
Front Single-row chain guard

Gearbox Warranty 5 years

Jack Stand Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering
Type Standard self-level tongue with 57.2-cm (22.5-in.) narrow-profile with clevis hitch, Ball-type self-level hitch, or Articulated Ring hitch
