John Deere L341R
Large Square Baler
When your operation is all about the cow, the L341R Large Square Baler is the right choice for you. John Deere Precision Technology can help you evaluate season-to-season data to make decisions including productivity, fuel use, yield, weight and moisture.
Product Features:
- Bale Documentation With John Deere Operations Center™
- MegaWide™ Pickup With Mega Tough™ Pickup Teeth
- John Deere Moisture Sensor and Weighing System
- BalerAssist™ Drivetrain System
Features
When your operation is all about the cow, the L341R Large Square Baler is the right choice for you. John Deere Precision Technology can help you evaluate season-to-season data to make decisions including productivity, fuel use, yield, weight and moisture.
Bale Documentation With John Deere Operations Center™
MegaWide™ Pickup With Mega Tough™ Pickup Teeth
John Deere Moisture Sensor and Weighing System
BalerAssist™ Drivetrain System
Benefits

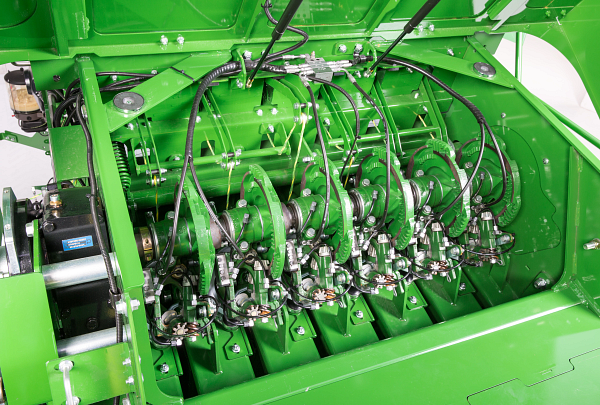

Double-Tie Knotter System
The double-tie knotter system offers reliable knotting in high-density and challenging baling conditions. It features an integrated auto-lube system and simplified maintenance to ensure consistent and efficient bale production.
High-Capacity Feeding Helps Maximize Crop Collection
With a MegaWide™ pickup, this baler is designed to provide increased feeding capacity and efficient crop collection. Its low profile design ensures clean pickup with minimal loss, while a spiral rotor and compressor rods promote smooth crop flow when handling large, heavy windrows.
Near Real-Time Data
Get near real-time data on yield, moisture, and bale weight via John Deere Operations Center™. Make informed production and resource management decisions, ensuring high-quality baling while helping to reduce operational costs.
Specifications
| High-Capacity Rotor | Yes |
| Knives | 21, 11, or 10 |
| Knife Protection | Individual spring |
| Cutting Length | 1.7 in. |
| Cutting Length | 44 mm |
| Slide Out Floor | Yes |
| Machine Weight | 20370 lb. |
| Machine Weight | 9210 kg |
| Machine Width | 3 m |
| Machine Width | 9.8 ft |
| Minimum Tractor Requirement | 108 kW 145 PTO hp - no Pre-Cutter 119 kW 160 PTO hp - with Pre-Cutter |
| Machine Length | 8 m |
| Machine Length | 26.25 ft |
| Machine Height | 9 ft |
| Machine Height | 2.75 m |
| Density Control | Four hydraulic cylinders |
| Bale Chamber Length | 120 ft |
| Bale Chamber Length | 3.05 m |
| Number Of Plunger Strokes | 45 spm |
| Plunger Stroke | 27 in. |
| Plunger Stroke | 695 cm |
| Control | ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630 |
| Number Of Hydraulic Cylinders | 4 |
| Bale Length | 60 cm |
| Bale Length | 24 in. |
| Bale Height | 90 cm |
| Bale | 90x120 cm cm |
| Bale | 3x4 ft in. |
| Bale Width | 46.5 in. |
| Bale Width | 120 cm |
| Bale Height | 35 in. |
| Pickup Diameter | 10 in. |
| Pickup Diameter | 25.6 cm |
| Tine Spacing | 6.6 mm |
| Tine Spacing | 2.6 in. |
| Number Of Tine Bars 4-5 | 4 |
| Intake Width | 220 cm |
| Intake Width | 86 in. |
| Single Axle | 600/50/22.5 or 710/40R/22.5 |
| Tandem Axle Steered (Optional) | 500/55/20 or 550/45/22.5 |
| Brakes System | Optional hydraulic |
| Number Of Knotters | 6 |
| Twine Capacity (Rolls) | 30 |
