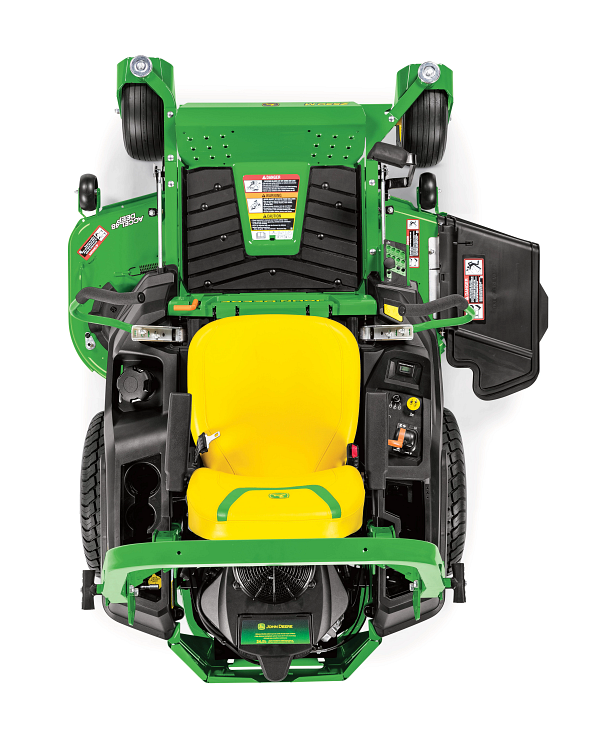

Top studio view of a Z530M ZTrakâ„¢ Mower
Studio front right view of a Z530M ZTrakâ„¢ Mower
Front right view of a Z530M ZTrakâ„¢ Mower with collection bag attached on a grassy lawn

John Deere Z530M

ZTrak™ Mower

The Z530M ZTrak Mower offers big mower performance at an affordable price. The Z530M offers a bigger frame, 22-in. tires, and 8-mph mowing speeds while many competitors settle for 20-in. tires and 7-mph mowing speeds.

Product Features:

  • 8-mph Top Speed
  • Accel Deep™ Mower Decks Forged from 10-Gauge Steel
  • 20-in. High-Back Seat with Armrests and ComfortGlide™ Suspension
  • 4-year/300-hour Bumper-to-Bumper Warranty ⓘ
View Product Broshure

Specifications

Service Interval Decal Yes
Front Caster Tires 13x6.5-6
Maximum Towing Capacity 113 kg
Maximum Towing Capacity 250 lb.
Storage Compartment Yes
Drive Tires 22x9.5-10
Front Caster Bearings Sealed ball bearings
Hour Meter Yes
Primer/Paint E-coat/powder
Cup Holder Yes
Frame Heavy-duty frame tubing

Mower Cut Height - Maximum 10.2 cm
Mower Cut Height - Maximum 4 in.
Cut Height Increments 0.64 cm
Cut Height Increments 0.25 in.
Type Foot lift
Mower Cut Height - Minimum 1 in.
Preset Cut Height Yes
Mower Cut Height - Minimum 2.5 cm

Slope 0perating Limit Standard: 15 degrees; With Material Collection System: 10 degree (angle)
Operator Video Yes
Operator Presence System Yes
Rollover Protective Structure (ROPS) Yes
Park Brake Interlock Yes

Mower Deck Material 3.4 mm
Mower Deck Material 0.135 in.
Cutting Width 48/54/60 in.
Cutting Width 122/137/152 cm
Mower Deck Material 10 gauge
Type Side discharge
Mower Drive System V-belt

Rubber Floor Mat Foot platform only
Protective Cover No
Material Collection System 230 L
Material Collection System 6.5 bu
Sun Shade Optional
Material Collection System Power Flow rear bagger / Not available on 60A
Mulching System Optional MulchControl attachment, 54 in. (137 cm); Optional MulchControl attachment, 60 in. (152 cm)
Mounted Sprayer No L
Mounted Sprayer No U.S. gal.
Light Kit Optional 4-point LED Light kit

Seat Back Height 50.8 cm
Seat Back Height 20 in.
Seat Suspension Two springs and ComfortGlide
Fore-Aft Adjustment 7.6 cm
Fore-Aft Adjustment 3 in.

Control Adjustment 2-height/9-fore-aft, 18 positions
Speed And Direction Control Twin levers
Forward Speed 8 mph
Forward Speed 12.9 km/h
Reverse Speed 4 mph
Reverse Speed 6.4 km/h

Displacement 726 cc
Fuel Tank Capacity 4.5 U.S. gal.
Fuel Gauge Electric gauge and fuel level sight line
Battery Cold Crank Amps 300 CCA
Lubrication 2 U.S. qt
Battery Voltage 12 V
Engine Power 24 hp
Type Overhead valve
Cooling Method Air
Lubrication Full pressure with replaceable filter
Cylinders V-twin
Fuel Tank Capacity 17 L
Displacement 44.3 cu in.
Lubrication 1.9 L
Engine Model Number FR730V
Choke/Speed Control Separate control levers
Engine Power 17.9 kW

Date Collected 2021-12-01T00:00:00
Manufacturing Location Greeneville, Tennessee, USA

Wheelbase 125 cm
Wheelbase 49.2 in.
Overall Length 76.9 in.
Overall Length 195.3 cm
Width Without Mower 46.6 in.
Width Without Mower 118.4 cm

Type 105 lb-ft
Type 142.4 Nm
Type Electric
Drive V-belt

Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
Warranty 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Note 1 Mower wash port makes cleaning the deck easier

Dual Hydros Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
