John Deere Z530R

ZTrak™ Mower with 54- or 60-in. Deck

The Z530R ZTrak Mower offers a great balance of upgraded performance and enhanced comfort. Large 23-in. tires and a 9-mph top speed can handle the toughest and biggest properties. Upgraded High Capacity Decks offer commercial-grade performance and durability.

Product Features:

  • 9-mph Top Speed
  • High Capacity Mower Decks from 9-Gauge Steel with Commercial-Grade Spindles

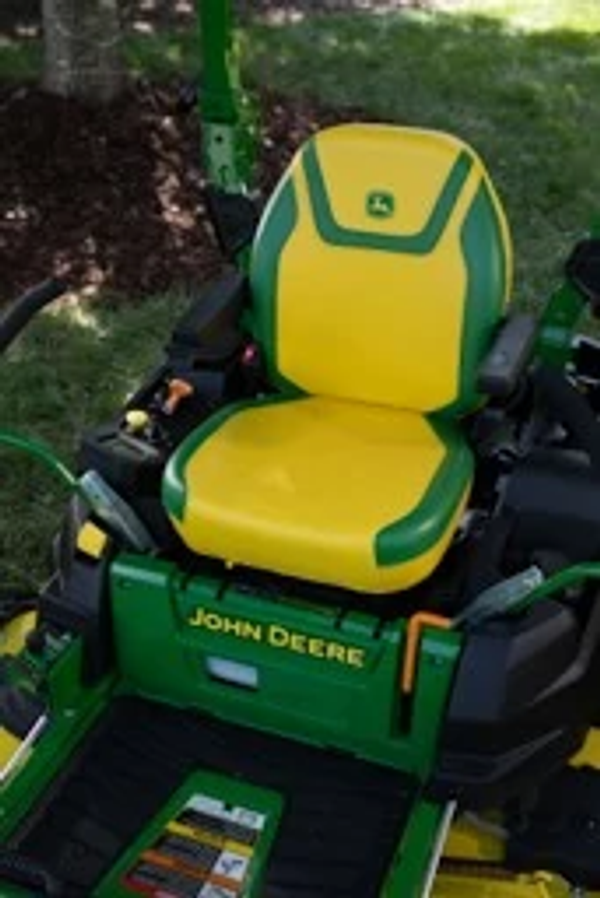

  • 22.5-in. High-Back Seat with Armrests and ComfortGlide™ Suspension
  • 4-Year/500-Hour Bumper-to-Bumper Warranty ⓘ
View Product Broshure

Specifications

Service Interval Decal Yes
Front Caster Tires 13x6.5-6
Maximum Towing Capacity 113 kg
Maximum Towing Capacity 250 lb.
Storage Compartment Yes and covered
Drive Tires 23x10.5-12
Front Caster Bearings Sealed ball bearings
Hour Meter Yes
Primer/Paint E-coat/powder
Cup Holder Yes
Frame Heavy-duty frame tubing

Mower Cut Height - Maximum 10.2 cm
Mower Cut Height - Maximum 4 in.
Cut Height Increments 0.64 cm
Cut Height Increments 0.25 in.
Type Foot lift
Mower Cut Height - Minimum 1 in.
Preset Cut Height Yes
Mower Cut Height - Minimum 2.5 cm

Slope 0perating Limit Standard: 15 degrees; With Material Collection System: 10 degree (angle)
Operator Video Yes
Operator Presence System Yes
Rollover Protective Structure (ROPS) Yes
Park Brake Interlock Yes

Mower Deck Material 3.8 mm
Mower Deck Material 0.15 in.
Cutting Width 48/54/60 in.
Cutting Width 122/137/152 cm
Mower Deck Material 9 gauge
Type High-capacity side discharge
Mower Drive System V-belt

Rubber Floor Mat Foot platform and toe board
Protective Cover Yes
Material Collection System 230 L
Material Collection System 6.5 bu
Sun Shade Optional
Material Collection System Power Flow rear bagger / Not available on 60HC
Mulching System Optional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm
Mounted Sprayer No L
Mounted Sprayer No U.S. gal.
Light Kit 4-point LED Light kit

Seat Back Height 57.1 cm
Seat Back Height 22.5 in.
Seat Suspension Two springs and ComfortGlide
Fore-Aft Adjustment 7.6 cm
Fore-Aft Adjustment 3 in.

Control Adjustment 2-height/9-fore-aft, 18 positions
Speed And Direction Control Twin levers
Forward Speed 9 mph
Forward Speed 14.5 km/h
Reverse Speed 4.5 mph
Reverse Speed 7.2 km/h

Displacement 726 cc
Fuel Tank Capacity 4.5 U.S. gal.
Fuel Gauge Electric gauge and fuel level sight line
Battery Cold Crank Amps 300 CCA
Lubrication 2 U.S. qt
Battery Voltage 12 V
Engine Power 24 hp
Type Overhead valve
Cooling Method Air
Lubrication Full pressure with replaceable filter
Cylinders V-twin
Fuel Tank Capacity 17 L
Displacement 44.3 cu in.
Lubrication 1.9 L
Engine Model Number FR730V
Choke/Speed Control Separate control levers
Engine Power 17.9 kW

Date Collected 2021-12-01T00:00:00
Manufacturing Location Greeneville, Tennessee, USA

Wheelbase 125 cm
Wheelbase 49.2 in.
Overall Length 81.9 in.
Overall Length 208 cm
Width Without Mower 48.7 in.
Width Without Mower 123.7 cm

Type 125 lb-ft
Type 169.5 Nm
Type Electric
Drive V-belt

Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
Warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Note 1 Mower wash port makes cleaning the deck easier

Dual Hydros Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
