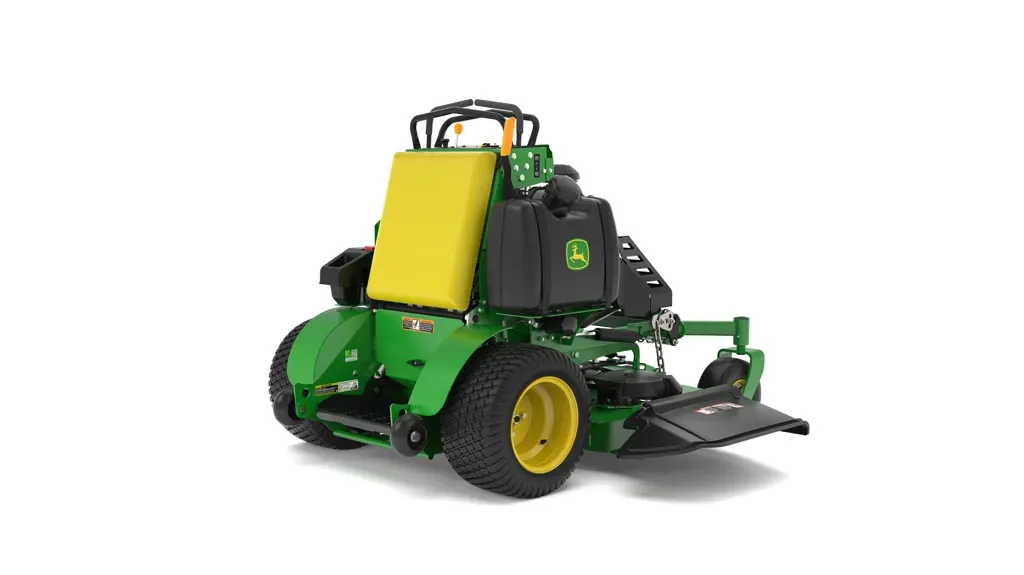

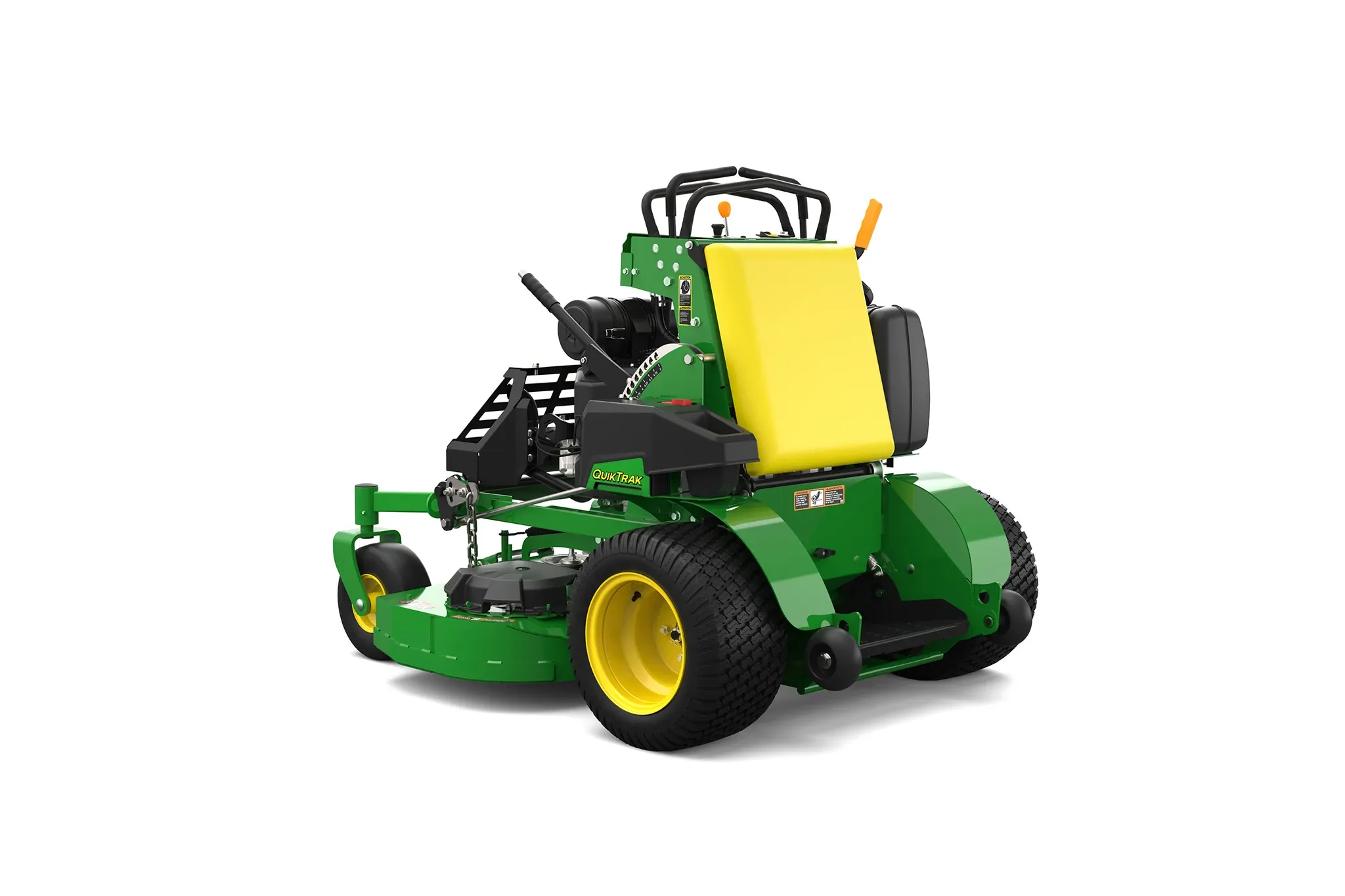

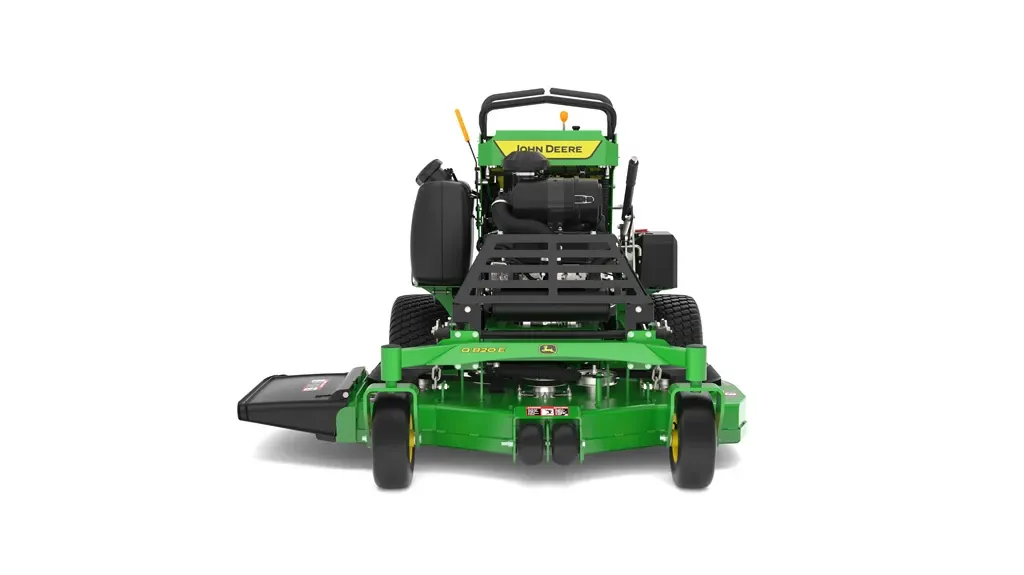

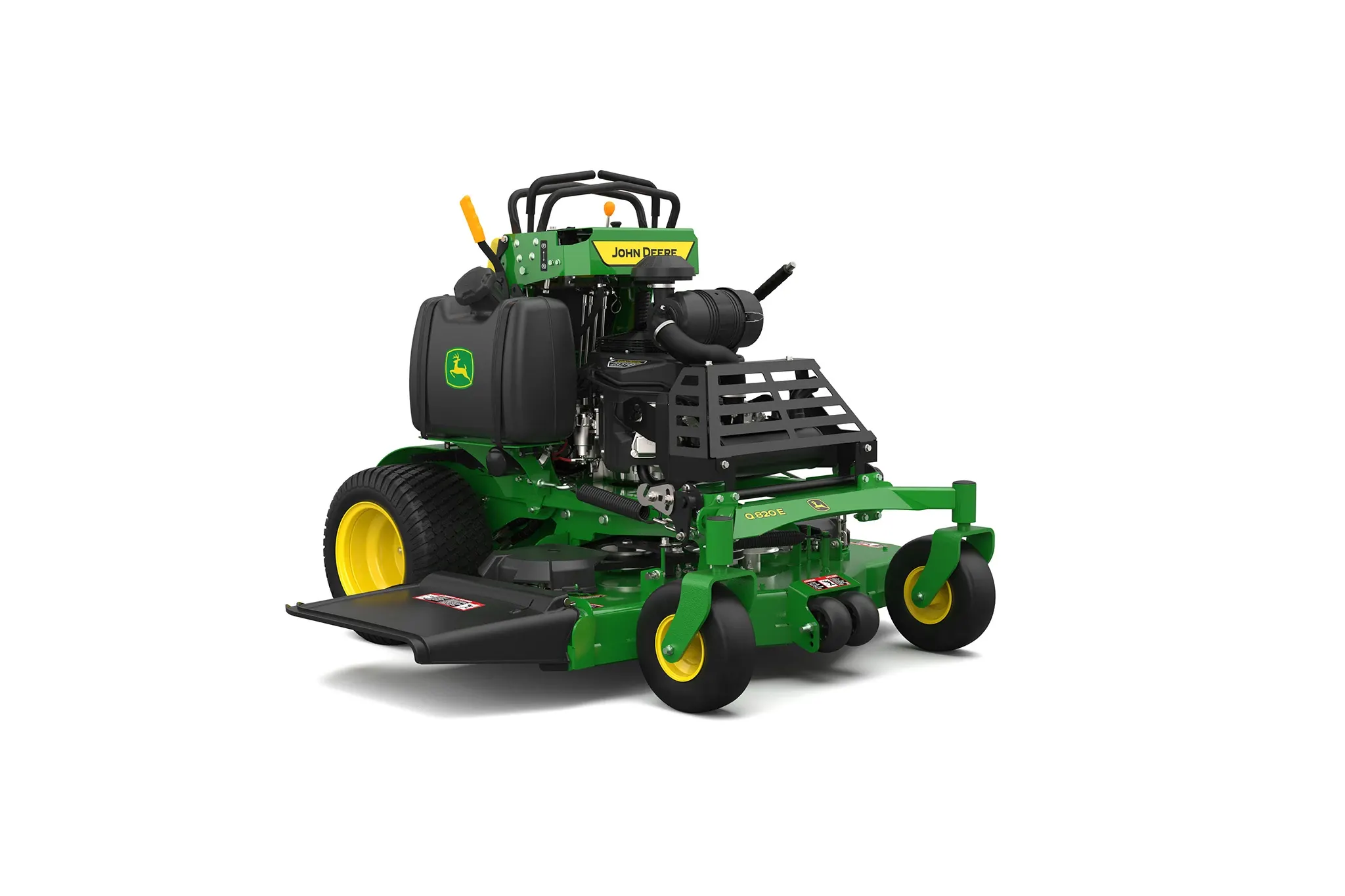

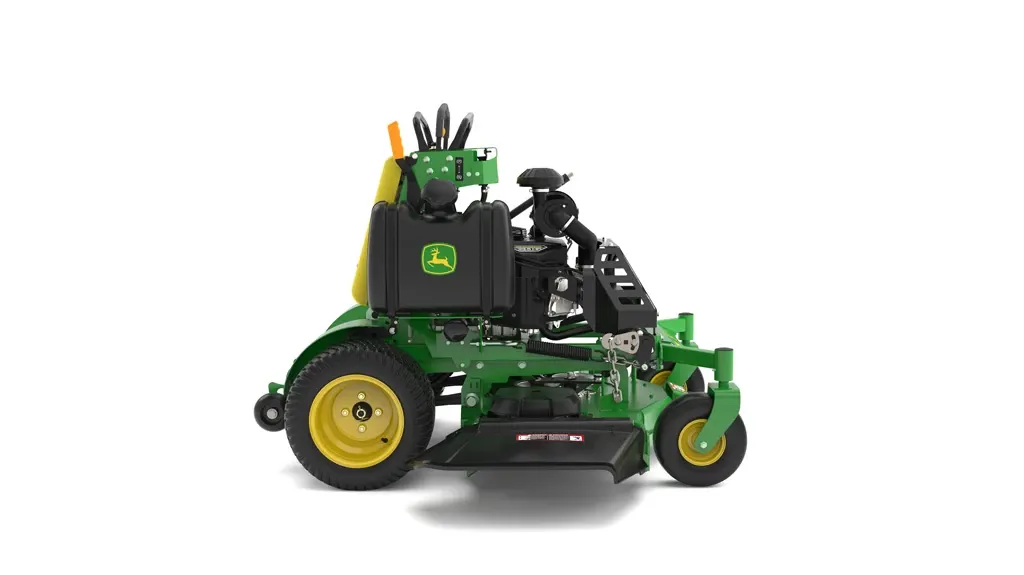

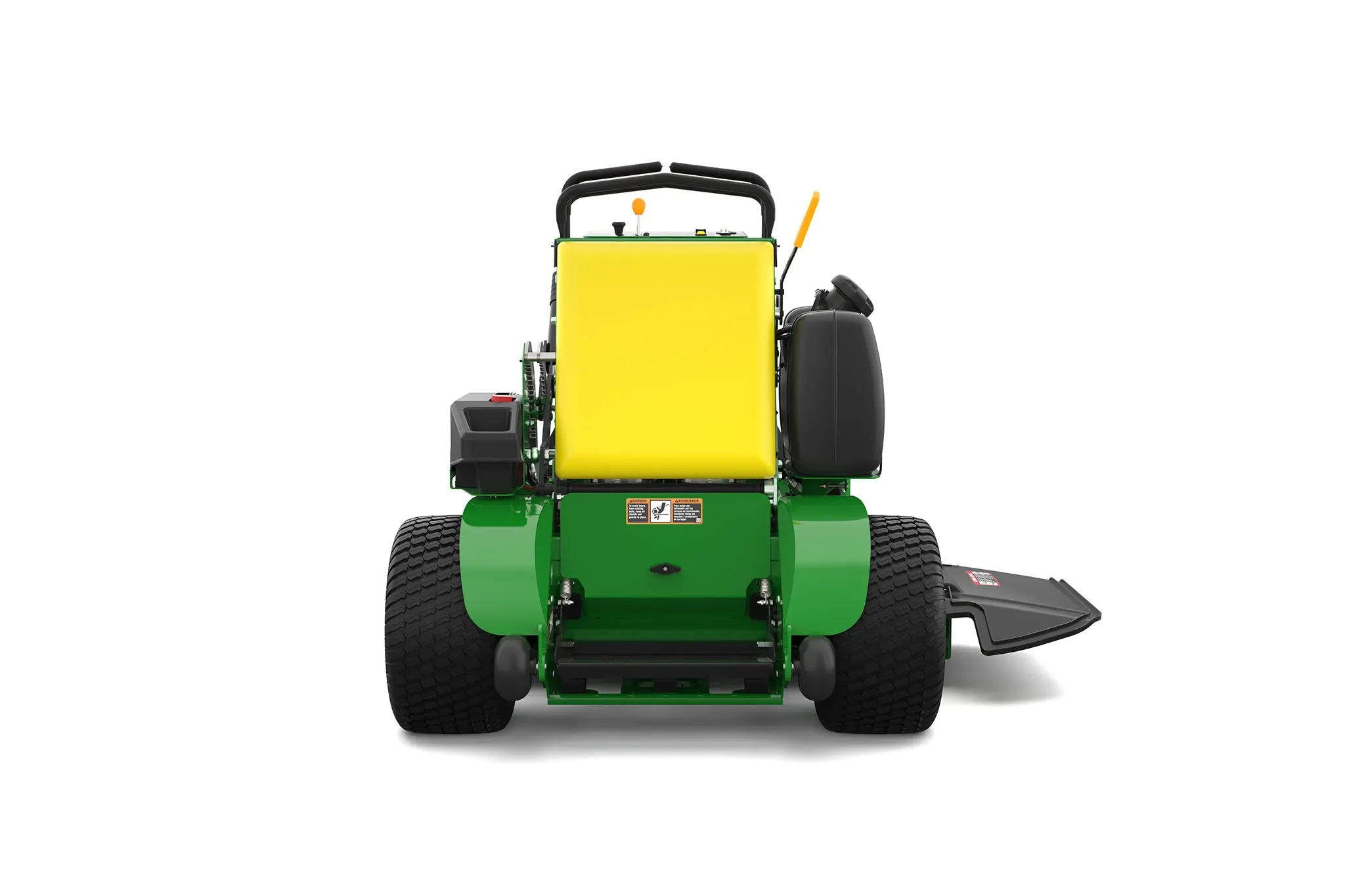

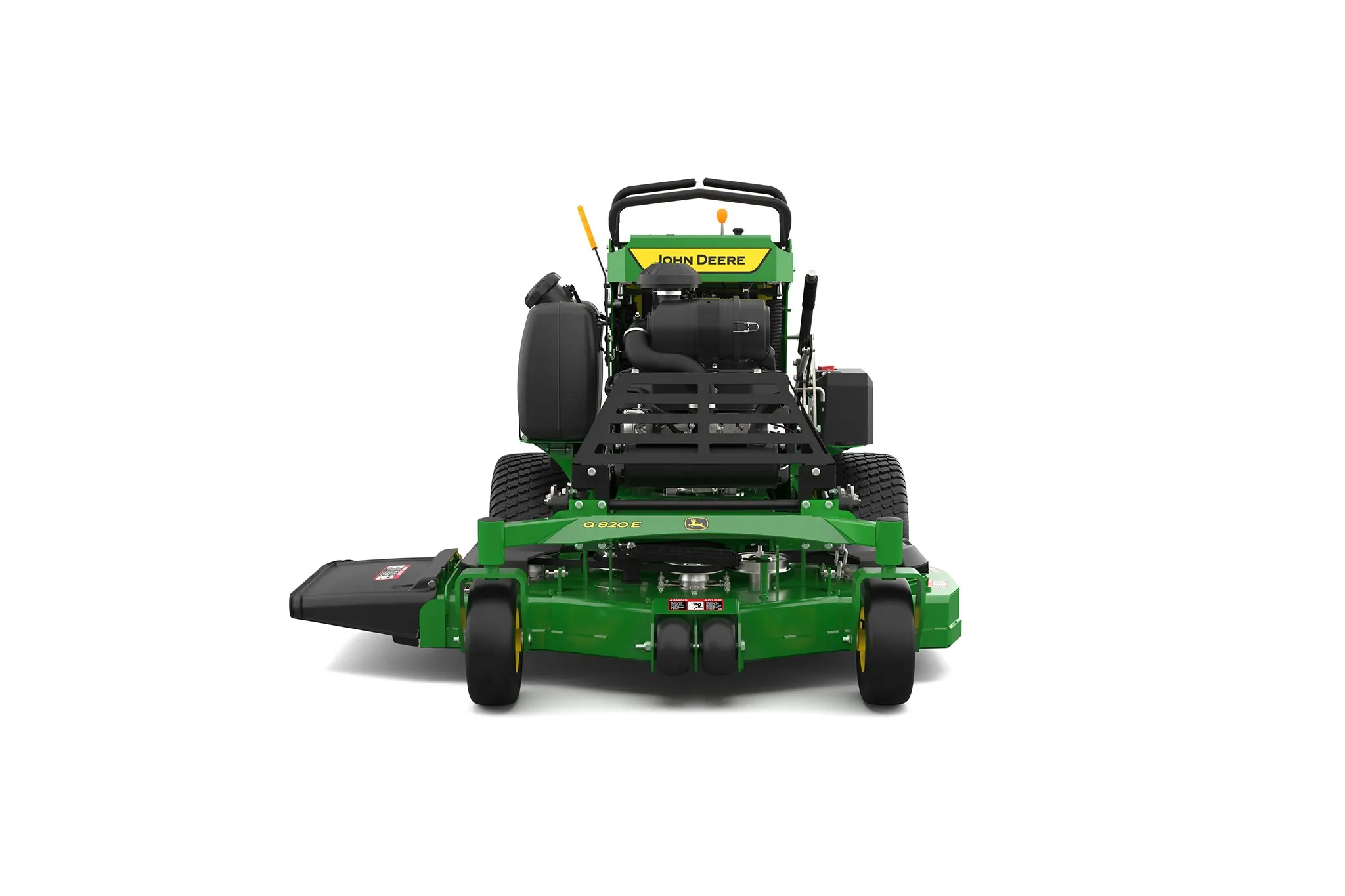

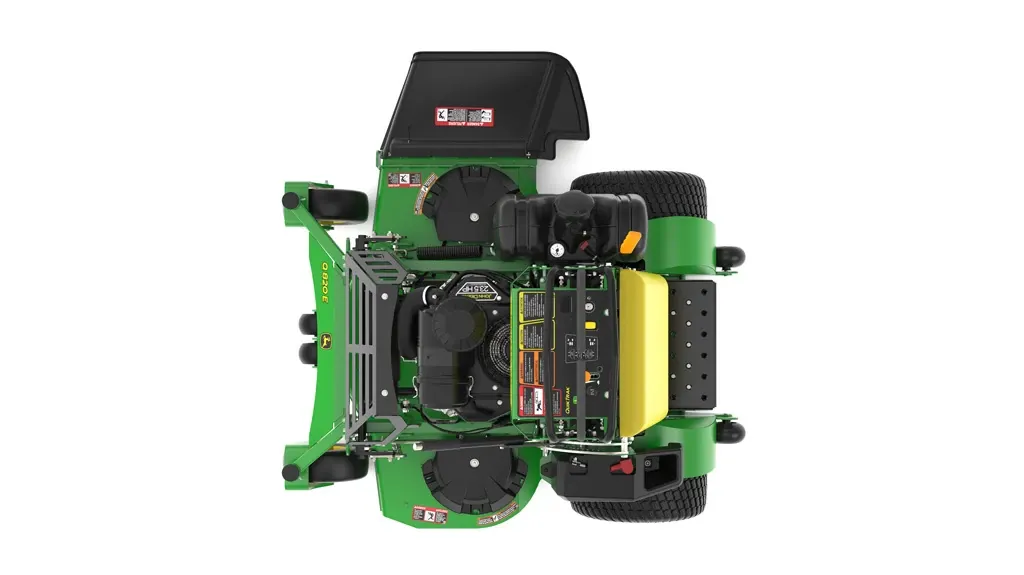

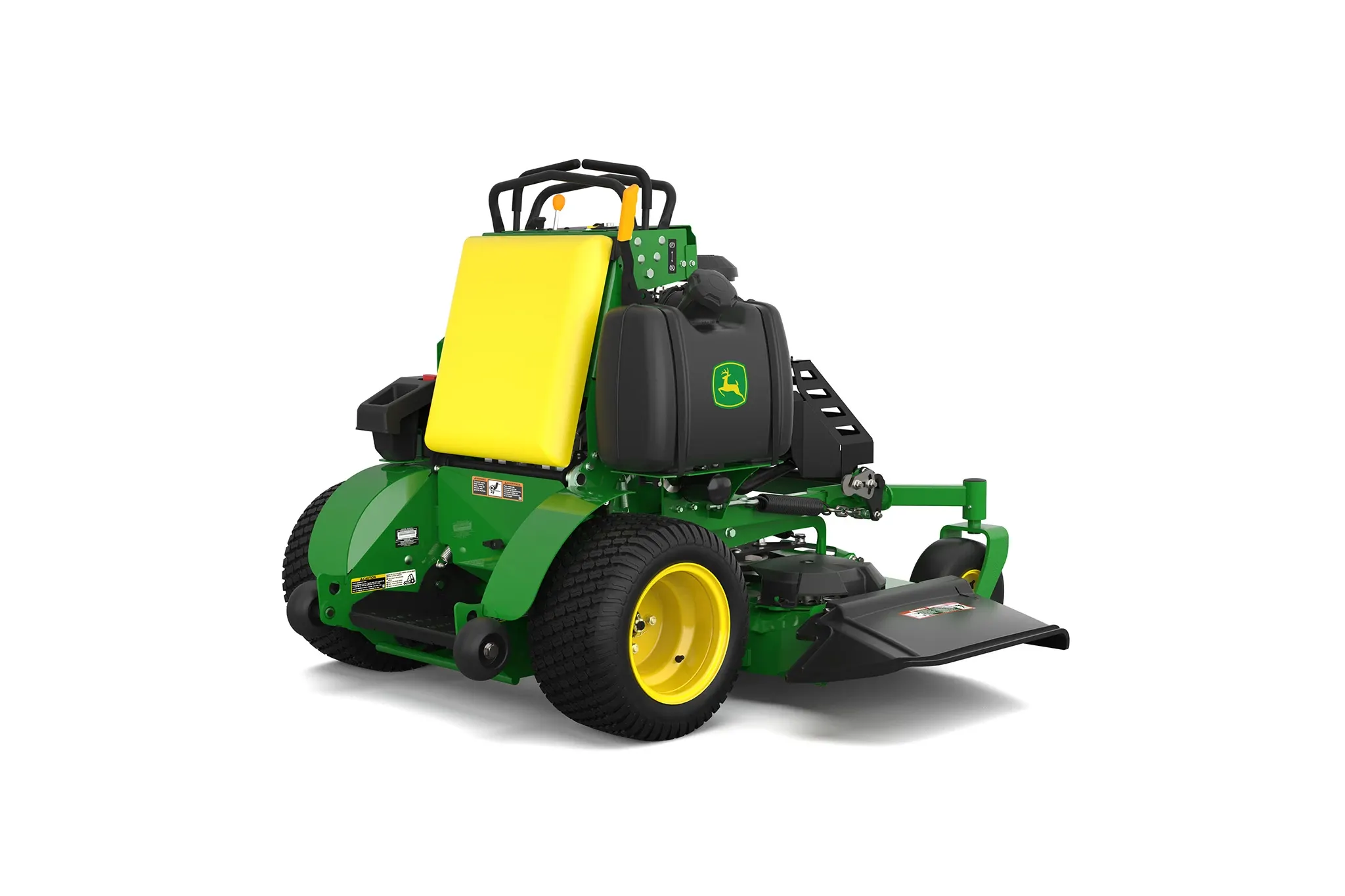

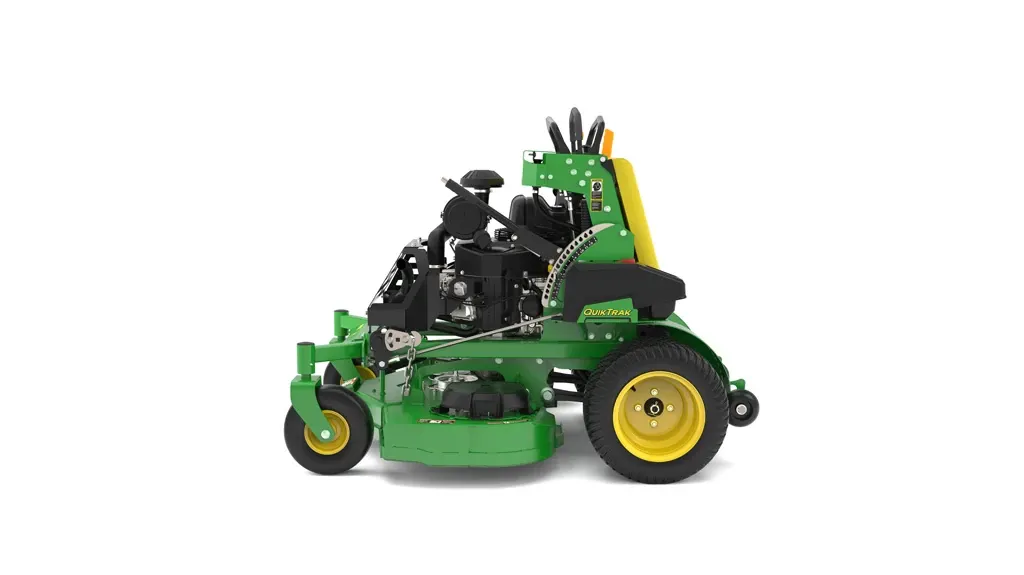

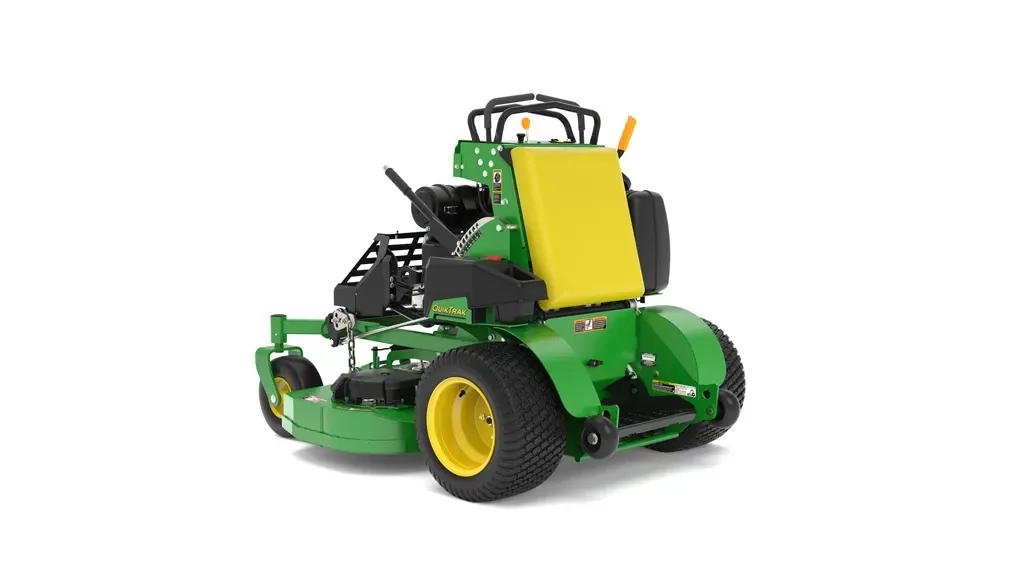

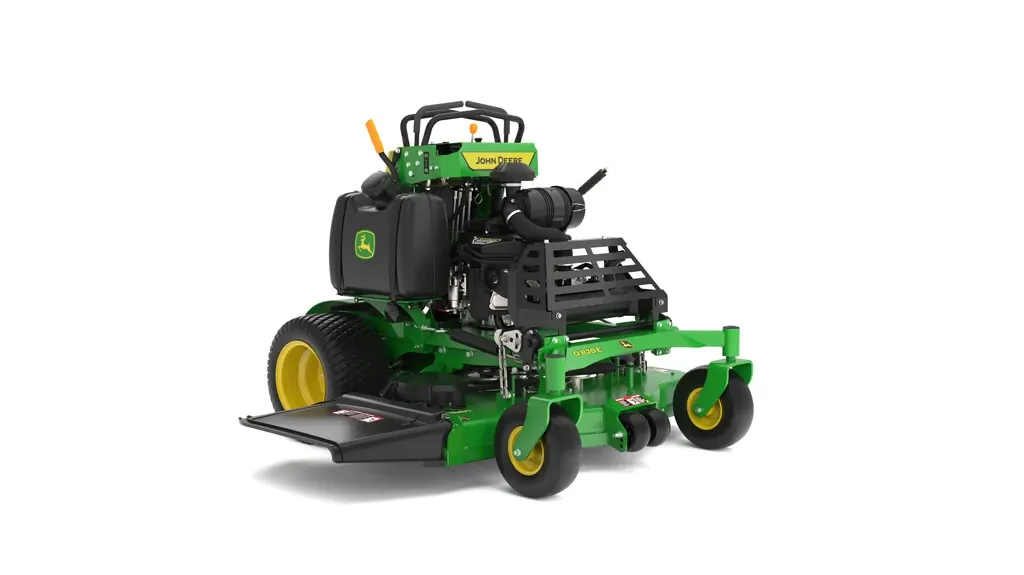

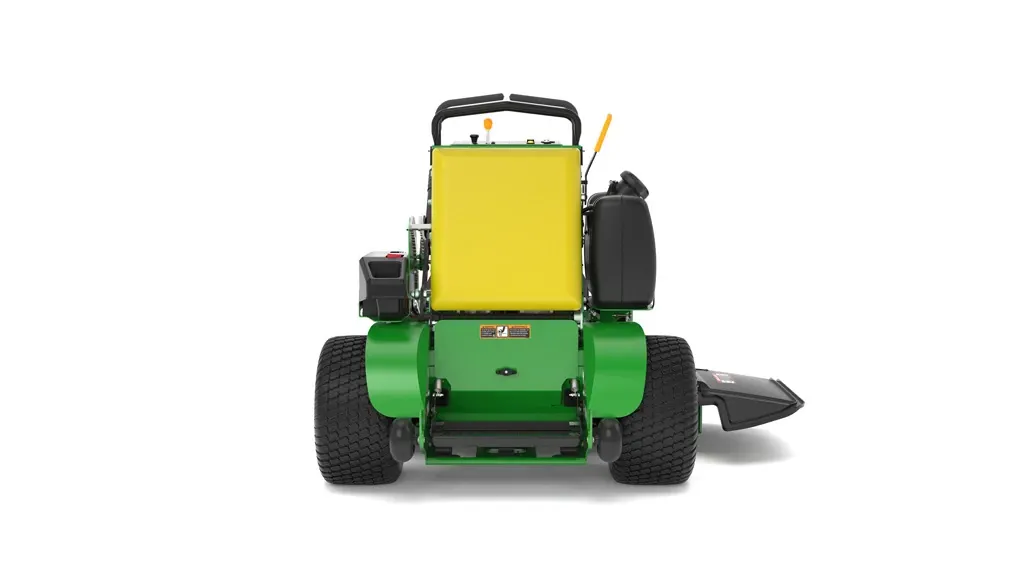

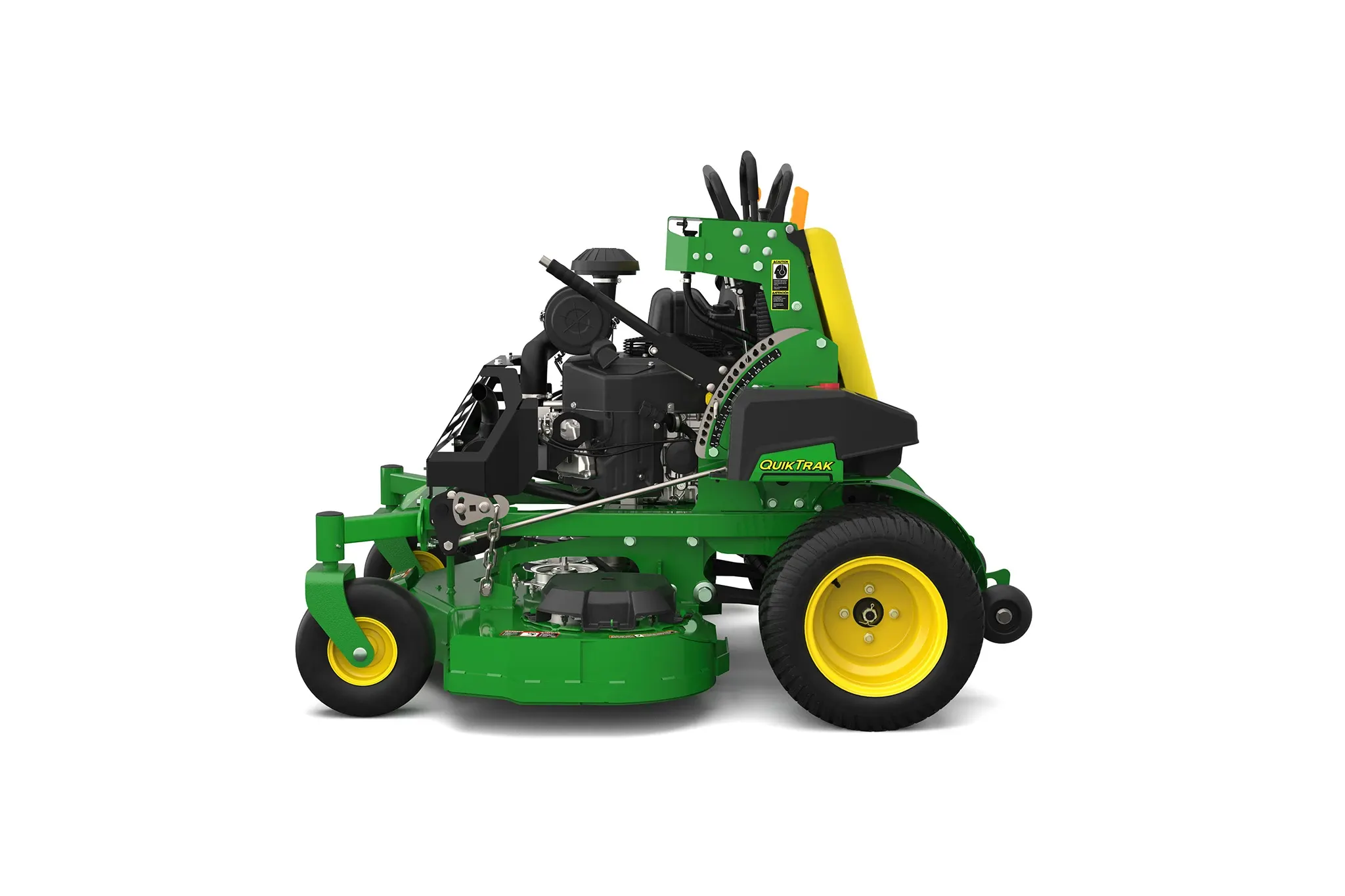

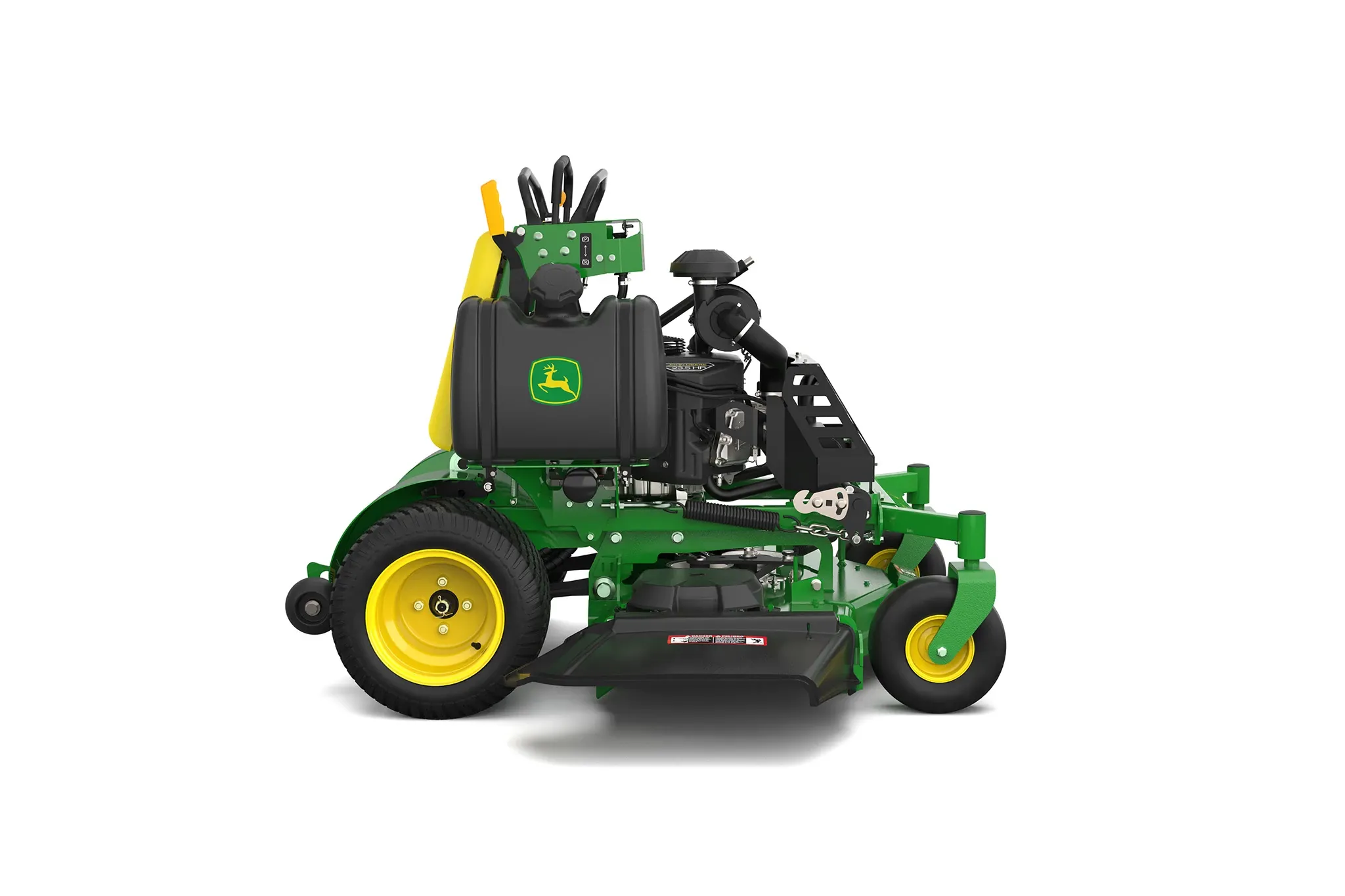

Q820E QuikTrak Stand-On Mower Studio Image

John Deere Q820E

QuikTrak™ Stand-On Mower

Navigate complex landscapes efficiently with the Q820E QuikTrak. Designed for maneuverability and operator comfort, this stand-on mower helps you maintain productivity across diverse commercial properties.

Product Features:

23.5-hp (17.5-kW)
48" Deck, 7-Gauge Fabricated Deck
Mow Up to 8 mph
Warranty: 36 Months or 1200 Hours, Whichever Comes First. First 24 Months, No Hour Limitation ^ⓘ

View Product Broshure

Features

Navigate complex landscapes efficiently with the Q820E QuikTrak™. Designed for maneuverability and operator comfort, this stand-on mower helps you maintain productivity across diverse commercial properties.

23.5-hp (17.5-kW)

48" Deck, 7-Gauge Fabricated Deck

Mow Up to 8 mph

Warranty: 36 Months or 1200 Hours, Whichever Comes First. First 24 Months, No Hour Limitation

Benefits

Comfortable Operator Platform

An ergonomically designed platform provides a leaning pad to ensure operator comfort. Additionally, the foot platform is cushioned for a smoother and more comfortable operation for extended periods.

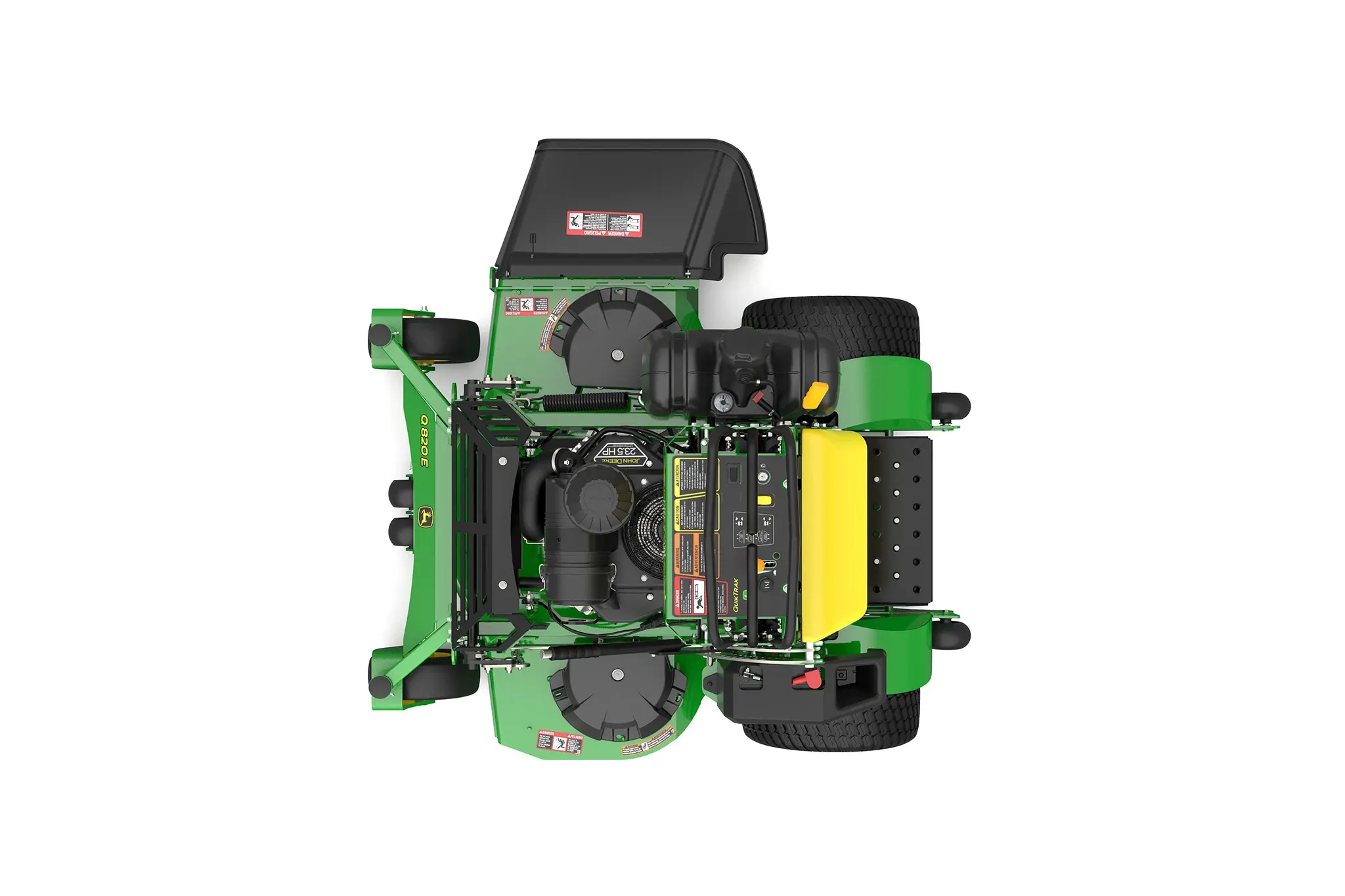

Overhead view of the control panel, rear fenders, operator platform/leaning pad, and half of the motor of a Q810E QuikTrak™ Stand-On Mower

Easy-to-Use Controls for Comfort and Productivity

Intuitive, color-coded control placement ensures that operators can find and use easily. Two stationary reference bars are included for convenience and security, as well as provide protection to the controls from inadvertent activation.

Compact Design

The Q800E series takes up less space on the trailer, can operate in tighter areas compared to other machine forms, and provides operator great visibility around the unit.

Specifications

Height-Of-Cut Increments	0.25 in.
Height-Of-Cut Increments	0.64 cm
Cutting Width	48 in.
Cutting Width	122 cm
Mower Deck Size	48-in. (122-cm) fabricated
Height-Of-Cut Range	3.8-12.7 cm
Height-Of-Cut Range	1.5-5 in.
Deck Thickness	7 gauge / 0.180 in. / 4.6 mm
Discharge	Side
Deck Construction	Fabricated steel, floating mount system

Hydraulic Pumps	0.61 cu in. / 10 cc
Forward Speed	0-12.9 km/h
Speed Direction And Control	Twin hand-controlled levers
Speed Range	0-8 mph
Hydraulic Capacity	5 U.S. qt
Reverse Speed	0-3.5 mph
Wheel Motors	12 cu in. / 196 cc
Filter	Spin-on replaceable
Forward Speed	0-8 mph
Transmission	Separate hydraulic pumps and motors
Speed Range	0-12.9 km/h
Hydraulic Capacity	4.7 L
Reverse Speed	0-5.6 km/h
Hydraulic Oil Cooler	Radiator core

Caster Wheels	11x4-5
Caster Wheel Type	Flat free
Front Anti-Scalp Rollers	Double-captured center

Park Brake	Tire engagement
Dynamic Braking	Dual hand-controlled levers
Park Brake Actuation	Hand lever

Fuel Type	Gasoline
Fuel Tank Capacity	21.2 L
Fuel Tank Capacity	5.6 U.S. gal.
Fuel Tank Switch/Shut-Off Valve	Yes

Displacement	726 cc
Displacement	44.3 cu in.
Cooling	Forced air, with integrated clean out ports
Air Cleaner	Heavy-duty canister type with safety element
Crankcase Capacity	2.1 L
Engine Power	Gross at 3,600 rpm: 23.5 hp / 17.5 kW
Crankcase Capacity	2.2 U.S. qt
Oil Filter	Full flow, replaceable
Lubrication	Full pressure
Cylinders	2
Engine Manufacturer/Model	FX730V

Weight	800 lb.
Weight	363 kg
Width - With Chute Down	157 cm
Width - With Chute Down	62 in.
Length	59.75 in. / 151.8 cm

Load Rating	4 PR
Drive Wheels	18x10.5-10 pneumatic

Date Collected	2023-08-28T00:00:00

Number	3
Blade Tip Speed	Approximately 18,000 fpm / 5486 m/min
Thickness	0.25 in. / 0.64 cm

Type	Electro-magnetic with brake, 125 lb-ft / 169 Nm
Drive	V-belt

Operator Presence Starting System	Yes
Battery Voltage	12 V
Hour Meter	Digital
Cold Cranking Amp	300 amp
Charge System	20 amp

Warranty	36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation.
