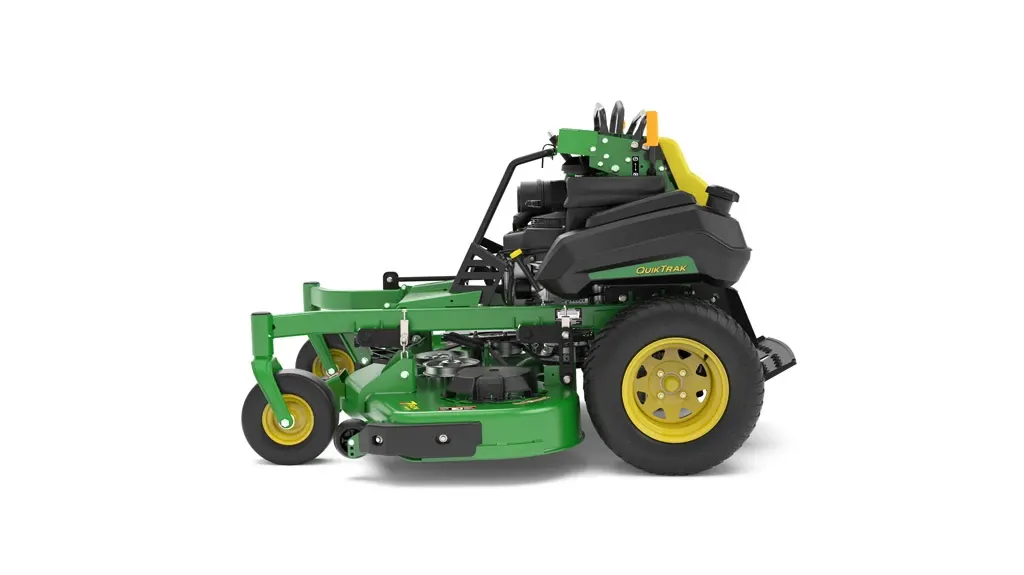

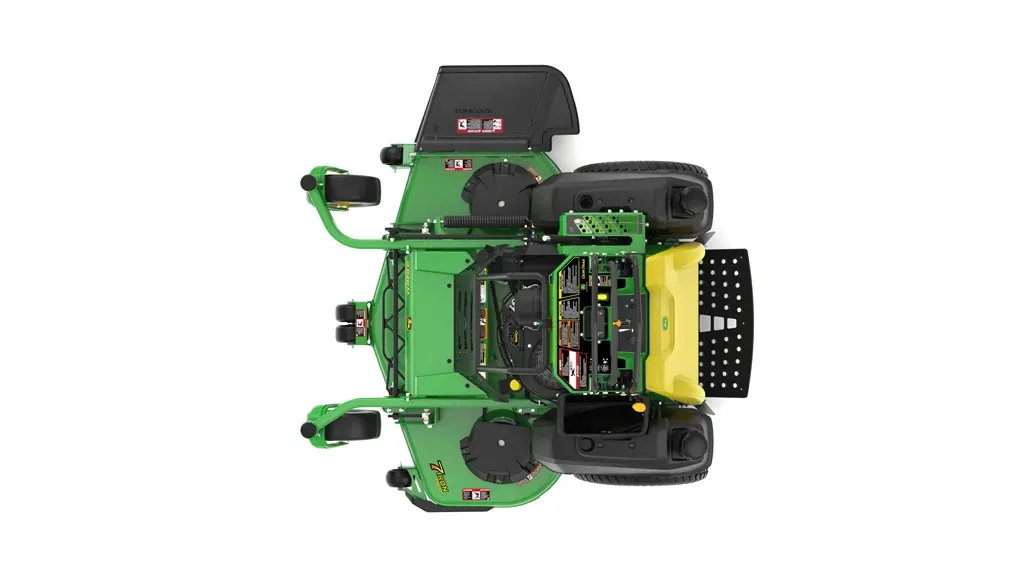

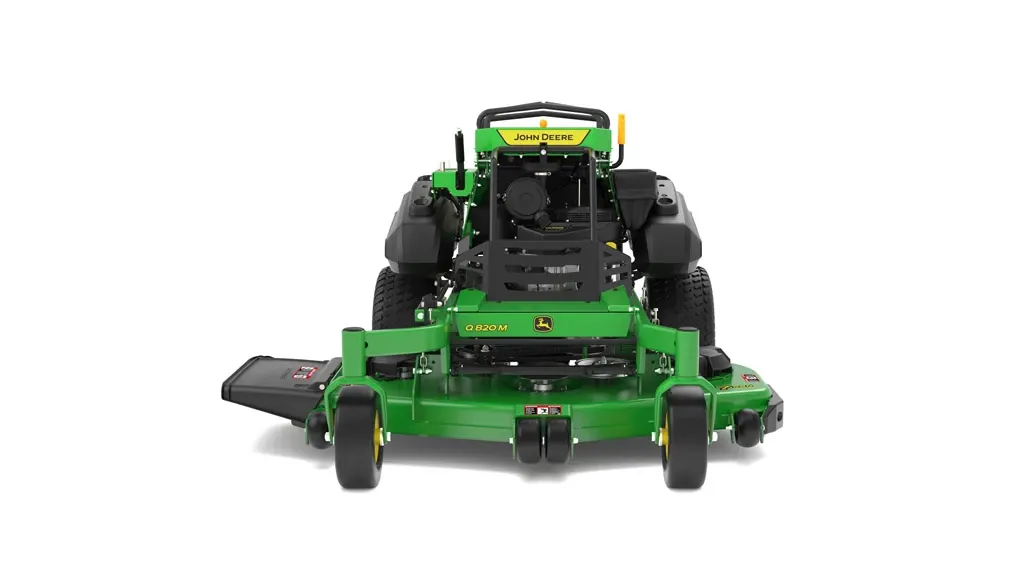

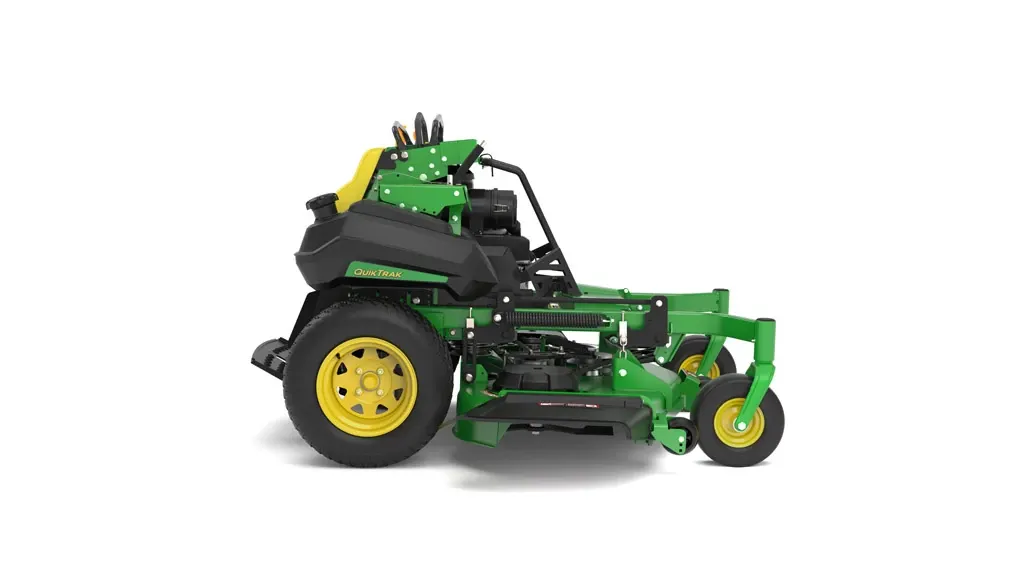

Q820M QuikTrak Stand-On Mower Studio Image

John Deere Q820M

QuikTrak™ Stand-On Mower

Deliver consistent quality with the Q820M QuikTrak Stand-On Mower. Built for professional landscapers who need reliable cutting performance, exceptional maneuverability, and durability that lasts.

Product Features:

23.5-hp (17.5-kW)
48-, 54-, and 60-in. 7Iron™ PRO Decks
Mow Up to 10 mph
Warranty: 36 Months or 1200 Hours, Whichever Comes First; First 24 Months, No Hour Limitation ^ⓘ

View Product Broshure

Features

Deliver consistent quality with the Q820M QuikTrak™ Stand-On Mower. Built for professional landscapers who need reliable cutting performance, exceptional maneuverability, and durability that lasts.

23.5-hp (17.5-kW)

48-, 54-, and 60-in. 7Iron™ PRO Decks

Mow Up to 10 mph

Warranty: 36 Months or 1200 Hours, Whichever Comes First; First 24 Months, No Hour Limitation

Benefits

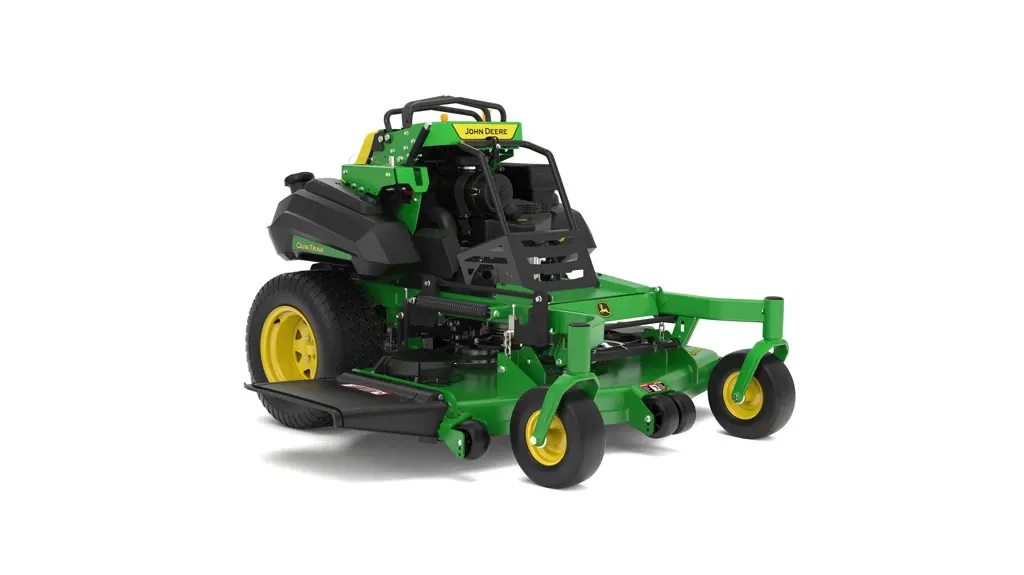

Front left studio view of a Q820M QuikTrak™ Stand-On Mower

Compact and Easy to Maintain

Rotate open the engine guard for easy access to engine and top of mower deck to clean or complete maintenance. It doesn't stop there. Without tools, the rear leaning pad and service panel can be removed, and a flip-down lower service panel opens up access to key components. Even the replacing of a drive belt does not require getting under the machine.

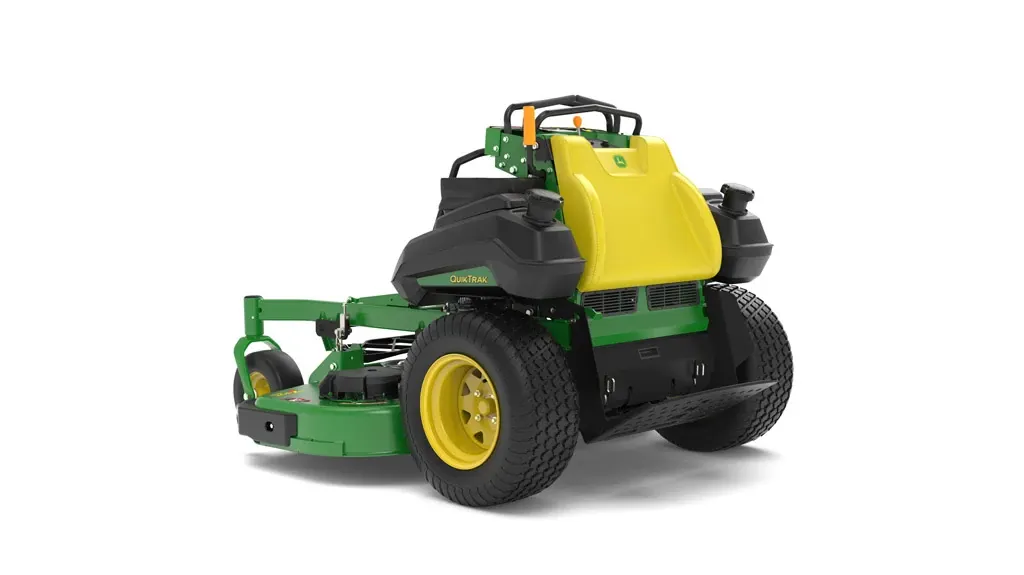

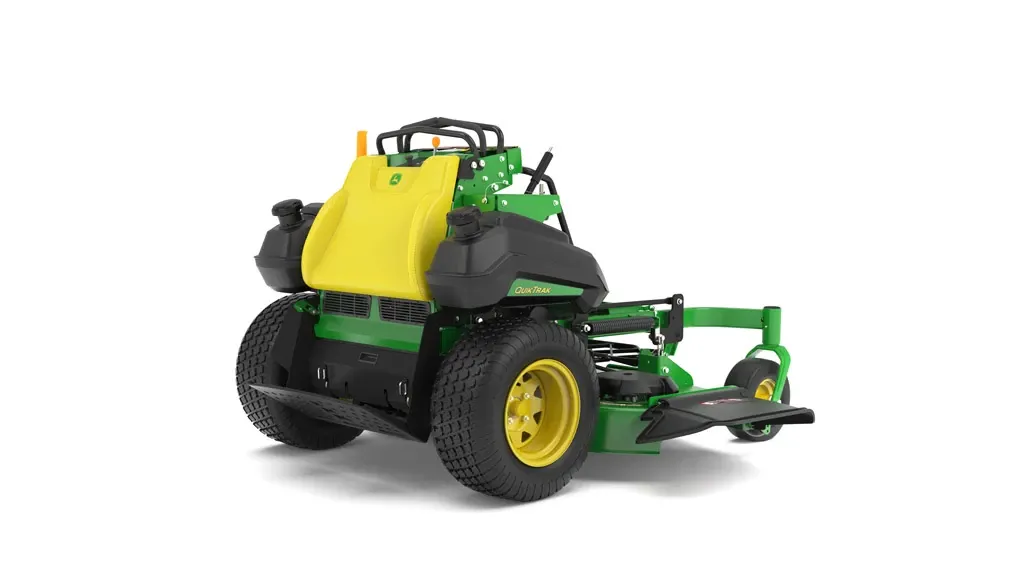

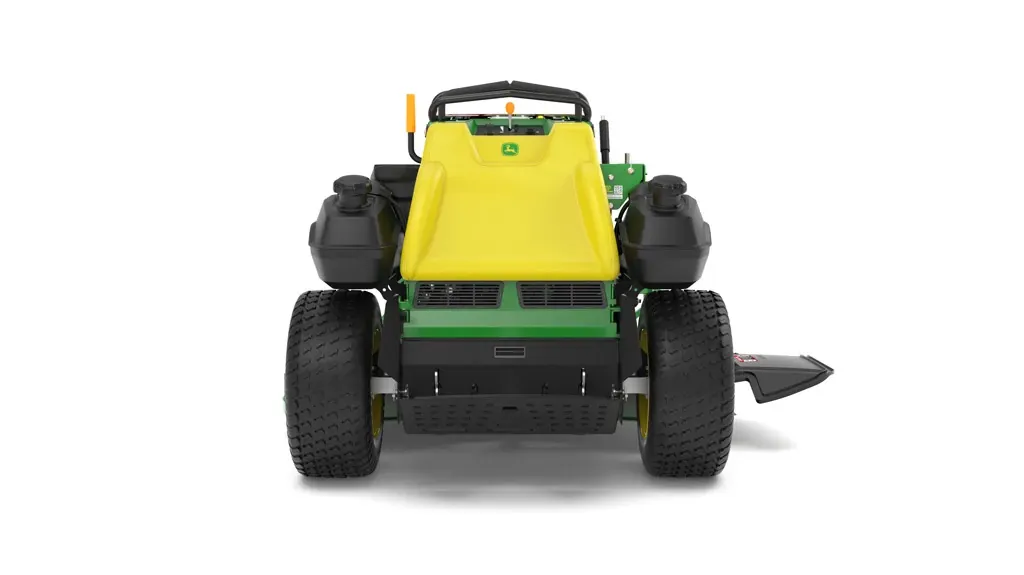

Rear studio view of a Q850M QuikTrak™ Stand-On Mower

Spacious Operator Platform

The M Series QuikTrak™ mowers offer a spacious operator platform, featuring a wide foot platform that positions operator into the leaning pad. Designed for operator comfort and stability, the spring-loaded platform smooths out bumps and reduces operator fatigue.

Integrated Transaxles

Tuff Torq® TZT13 integrated transaxles combine commercial-grade hydraulic pump and wheel motor into a single housing for each side. This design reduces potential leak points, providing exceptional cooling and durable performance.

Specifications

Height-Of-Cut Increments	0.25 in.
Height-Of-Cut Increments	0.64 cm
Cutting Width	48/54/60 in.
Cutting Width	122/137/152 cm
Mower Deck Size	48-in. (122-cm) 7Iron™ PRO side-discharge 54-in. (137-cm) 7Iron™ PRO side-discharge 60-in. (152-cm) 7Iron™ PRO side-discharge
Height-Of-Cut Range	3.8-12.7 cm
Height-Of-Cut Range	1.5-5 in.
Deck Thickness	7 gauge / 0.180 in. / 4.6 mm
Discharge	Side
Deck Construction	7-Iron™ PRO: one-piece forged steel

Hydraulic Pumps	0.79 cu in. / 13 cc
Forward Speed	0-16.1 km/h
Speed Direction And Control	Twin hand-controlled levers
Speed Range	0-10 mph
Hydraulic Capacity	6 U.S. qt
Reverse Speed	0-5 mph
Wheel Motors	13 cu in. / 213 cc
Filter	Two internal and replaceable
Forward Speed	0-10 mph
Transmission	Tuff Torq TZT13 IHT
Speed Range	0-16.1 km/h
Hydraulic Capacity	5.7 L
Reverse Speed	0-8 km/h
Hydraulic Oil Cooler	Two 8.5 in. (22 cm) fans

Caster Wheels	13x5-6
Caster Wheel Type	Flat free
Front Anti-Scalp Rollers	RH, center, LH

Park Brake	Internal wet disk
Dynamic Braking	Dual hand-controlled levers
Park Brake Actuation	Hand lever

Fuel Type	Gasoline
Fuel Tank Capacity	45.3 L
Fuel Tank Capacity	12 U.S. gal.
Fuel Tank Switch/Shut-Off Valve	No

Displacement	726 cc
Displacement	44.3 cu in.
Cooling	Forced air, with integrated clean out ports
Air Cleaner	Heavy-duty canister type with safety element
Crankcase Capacity	2.1 L
Engine Power	Gross at 3,600 rpm: 23.5 hp / 17.5 kW
Crankcase Capacity	2.2 U.S. qt
Oil Filter	Full flow, replaceable
Lubrication	Full pressure
Cylinders	2
Engine Manufacturer/Model	FX730V

Weight	1095 lb.
Weight	497 kg
Width - With Chute Down	188 cm
Width - With Chute Down	74 in.
Length	Foot platform up, 67.25 in. / 171 cm Foot platform down, 72 in. / 183 cm

Load Rating	4 PR
Drive Wheels	22x10-12 pneumatic (48 in.) / 22x12-12 pneumatic (54 in., 60 in.) / 22x11N12 Tweel

Number	3
Blade Tip Speed	Approximately 18,000 fpm / 5486 m/min
Thickness	0.25 in. / 0.64 cm

Type	Electro-magnetic with brake, 125 lb-ft / 169 Nm (48 in.) Electro-magnetic with brake, 200 lb-ft / 271 Nm (54 in., 60in.)
Drive	V-belt

Operator Presence Starting System	Yes
Battery Voltage	12 V
Hour Meter	Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
Cold Cranking Amp	300 amp
Charge System	20 amp

Warranty	36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation.
