Studio image with a front left view of a Gator XUV590M

John Deere XUV590M

Crossover Utility Vehicle

Do more with the GATOR XUV590M Utility Vehicle. Independent four-wheel suspension keeps you comfortable on rough ground, while a wide range of available attachments lets you customize for any task. A mid-size option that fits your property and your projects.

Product Features:

32-hp (23.8-kW) 586-cc EFI Liquid-Cooled Engine
Two-Speed CVT Transaxle With 4-Wheel Drive and Rear Differential Lock
Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires
Fully-Independent Adjustable Suspension with 8 in. (203 mm) of Travel

View Product Broshure

Features

Do more with the Gator™ XUV590M Utility Vehicle. Independent four-wheel suspension keeps you comfortable on rough ground, while a wide range of available attachments lets you customize for any task. A mid-size option that fits your property and your projects.

32-hp (23.8-kW) 586-cc EFI Liquid-Cooled Engine

Two-Speed CVT Transaxle With 4-Wheel Drive and Rear Differential Lock

Terra Hawk All-Terrain or Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires

Fully-Independent Adjustable Suspension with 8 in. (203 mm) of Travel

Benefits

View from the left front of an XUV560E Crossover Utility Vehicle of a man loading the cargo box with herbs inside a greenhouse

One-Piece Cargo Box

Haul up to 500 lb. (227 kg) in the 8.9-cu ft (250-L) cargo box. The box's composite design reduces noise and is supported by a welded steel-ladder structure. Unlatch and lift the cargo box with one hand or install an optional power lift. Tow up to 1500 lb. (680 kg) with the included receiver hitch.

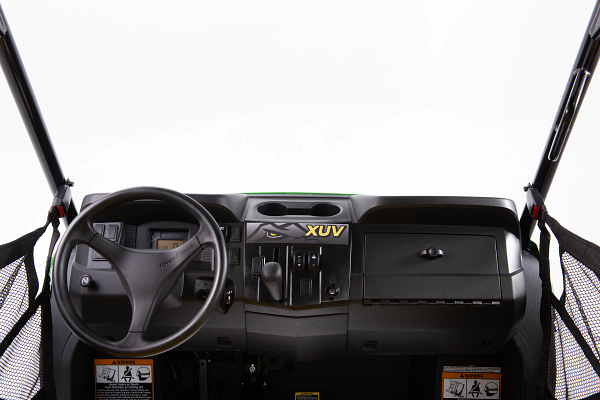

A straight-on view of the dashboard and steering wheel of a John Deere XUV, showing central controls, gauges, a storage compartment, and mesh doors

All-Day Comfort and Convenience

Operator‑centric design includes dash‑mounted gear‑shift levers, a digital display, power steering on select models, and dual cup holders. A spacious operator station offers side‑by‑side bench seating for two with ample legroom for easy entry and exit. Sealed under‑hood storage helps keep gear dry, with capacity varying by model.

man working with a smart phone and tablet

Optional AMS Integration and JDLink™ Modem Attachments

The optional AMS integration kit provides everything needed to mount your StarFire™ receiver and GreenStar™ display for boundary mapping, flagging field obstacles, and soil sampling. Install an optional JDLink™ modem and track your vehicle in the John Deere Operations Center with your fleet. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.

Specifications

Fuel Capacity	28 L
Weight	676 kg
Cargo Box Dimensions	32.3 x 47.6 x 11.7 in.
Tread Centers - Rear	46 in.
Tread Centers - Front	48 in.
Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Ground Clearance	267 mm
Tread Centers - Front	1220 mm
Height	73.5 in.
Wheelbase	72.8 in.
Ground Clearance	10.5 in.
Width	1435 mm
Cargo Box Capacity (Weight)	227 kg
Towing Capacity	680 kg
Payload Capacity	900 lb.
Length	2870 mm
Wheelbase	1860 mm
Height	1867 mm
Fuel Capacity	7.4 U.S. gal.
Weight	1491 lb.
Cargo Box Dimensions	820 x 1209 x 297 mm
Width	56.5 in.
Tread Centers - Rear	1168 mm
Cargo Box Capacity (Weight)	500 lb.
Towing Capacity	1500 lb.
Payload Capacity	408 kg
Length	113 in.

Battery	340 CCA
Alternator	65 amp
Color	Green/yellow, olive/black, or TRUETIMBER® Kanati camo
Power Steering	Standard
Battery	12 V
Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage	Two cupholders, sealed underhood storage, glove box
Power Port - DC Outlet	12 V
Seating	Black vinyl bench

Park Brake	Park in-transmission
Type	196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 35 mm (1.375 in.) diameter hydraulic twin-piston calipers

Cooling System	Liquid cooled
Displacement	586 cc
Displacement	35.8 cu in.
Engine Power	32 hp
Engine Power	23.8 kW
Engine Type	4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)

Rear	25x10-12 Terra Hawk all-terrain on steel wheels 26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels
Front	25x8-12 Terra Hawk all-terrain on steel wheels 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels

Date Collected	2024-01-15T11:08:00
Country Of Manufacture	U.S.

Rear Suspension	Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Front Suspension	Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar

Four Wheel Drive	Dash switch actuated four-wheel drive system
Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final Drive	Park, high, low, neutral, reverse transaxle
Traction Assist	Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent Control	No
