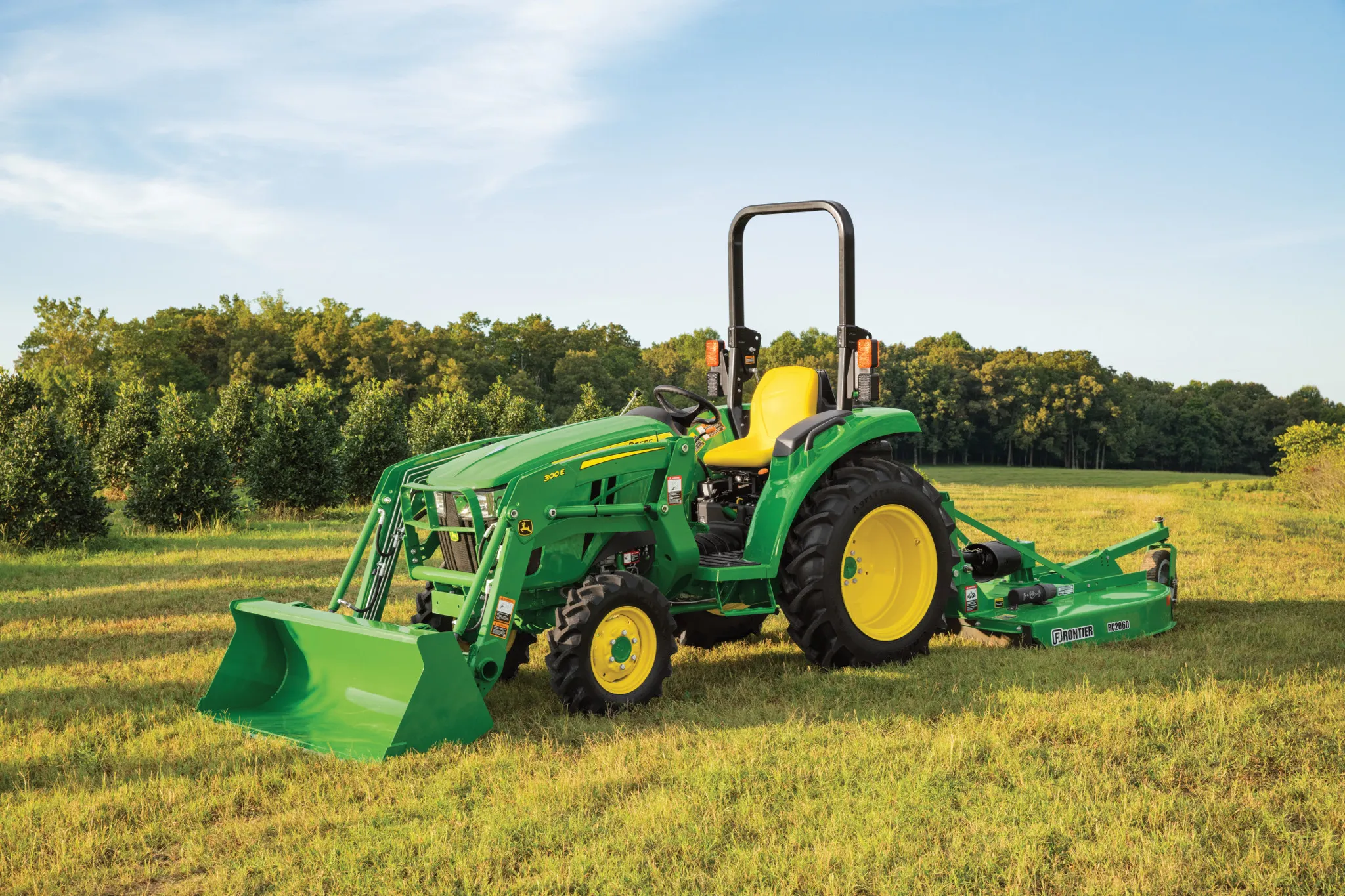

A green tractor with a front loader and rear rotary cutter sits in a grassy field under a clear sky, with trees lining the background and sun shining down

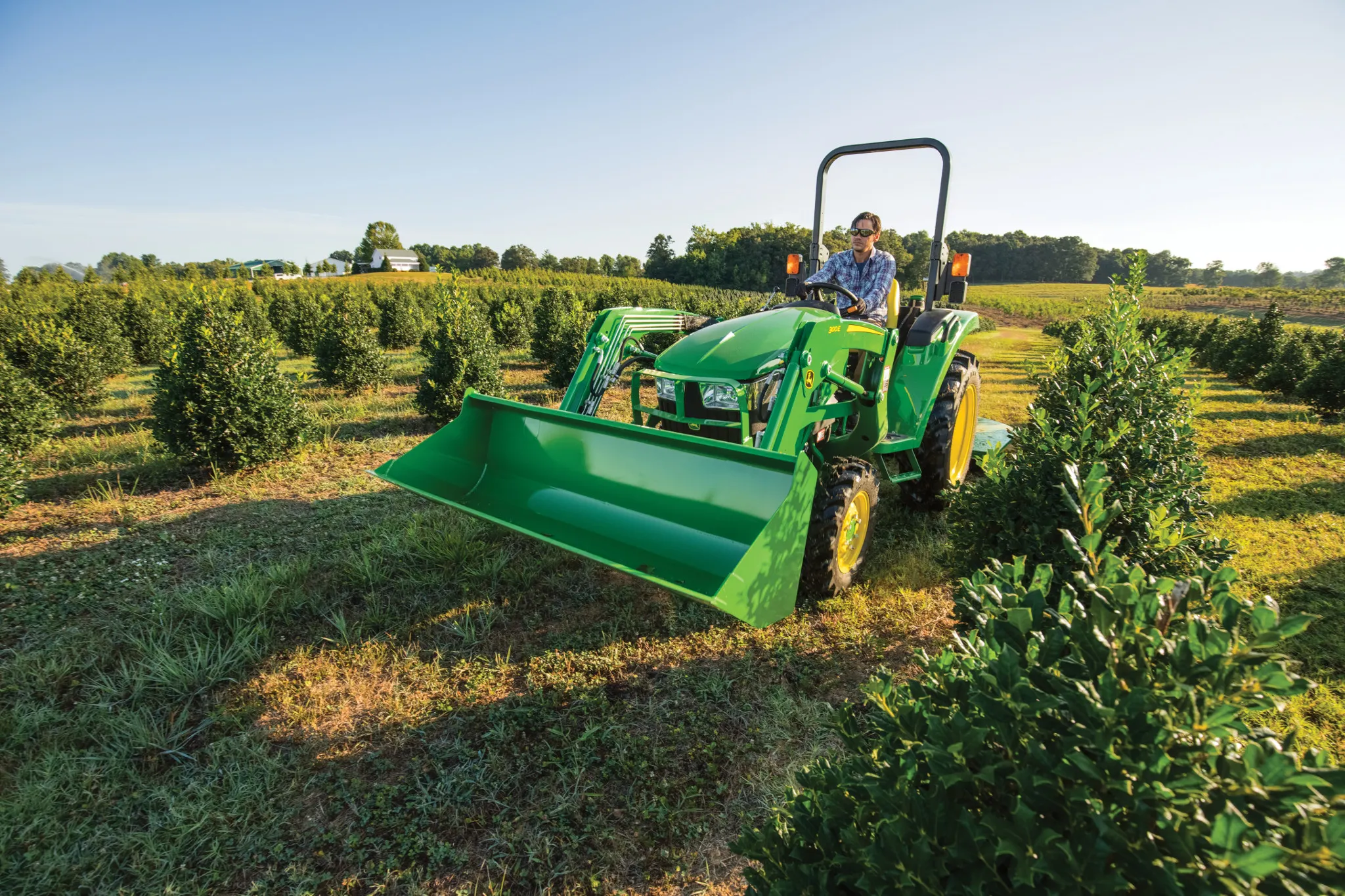

An operator on a green tractor with a front loader drives between rows of neatly planted trees in an orchard under bright daylight with a clear sky and expansive land in the background

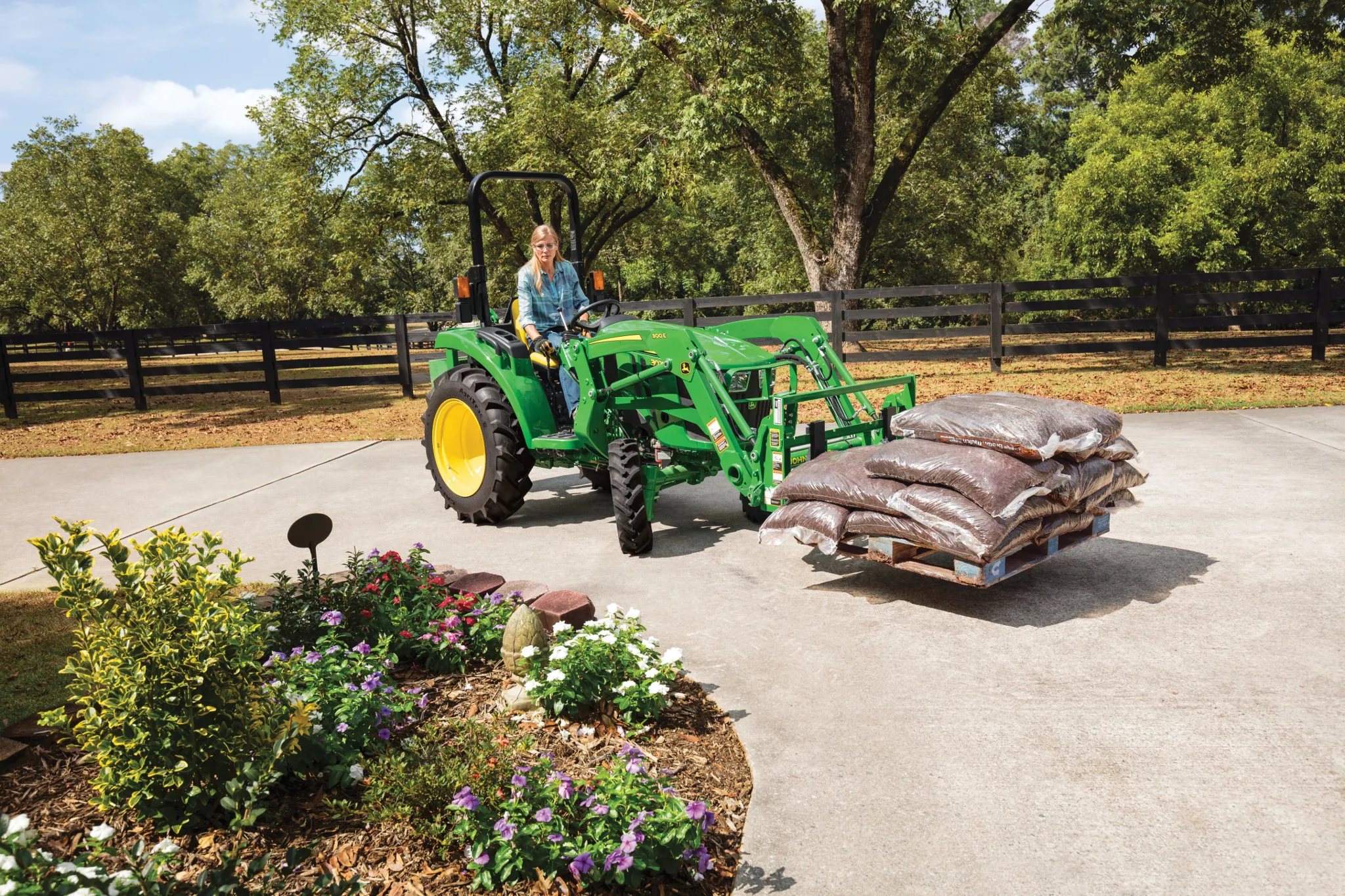

A green tractor with a front loader carries a pallet of bagged mulch across a paved driveway, with an operator seated at the controls, landscaped flowers in the foreground, and trees and fencing in the background

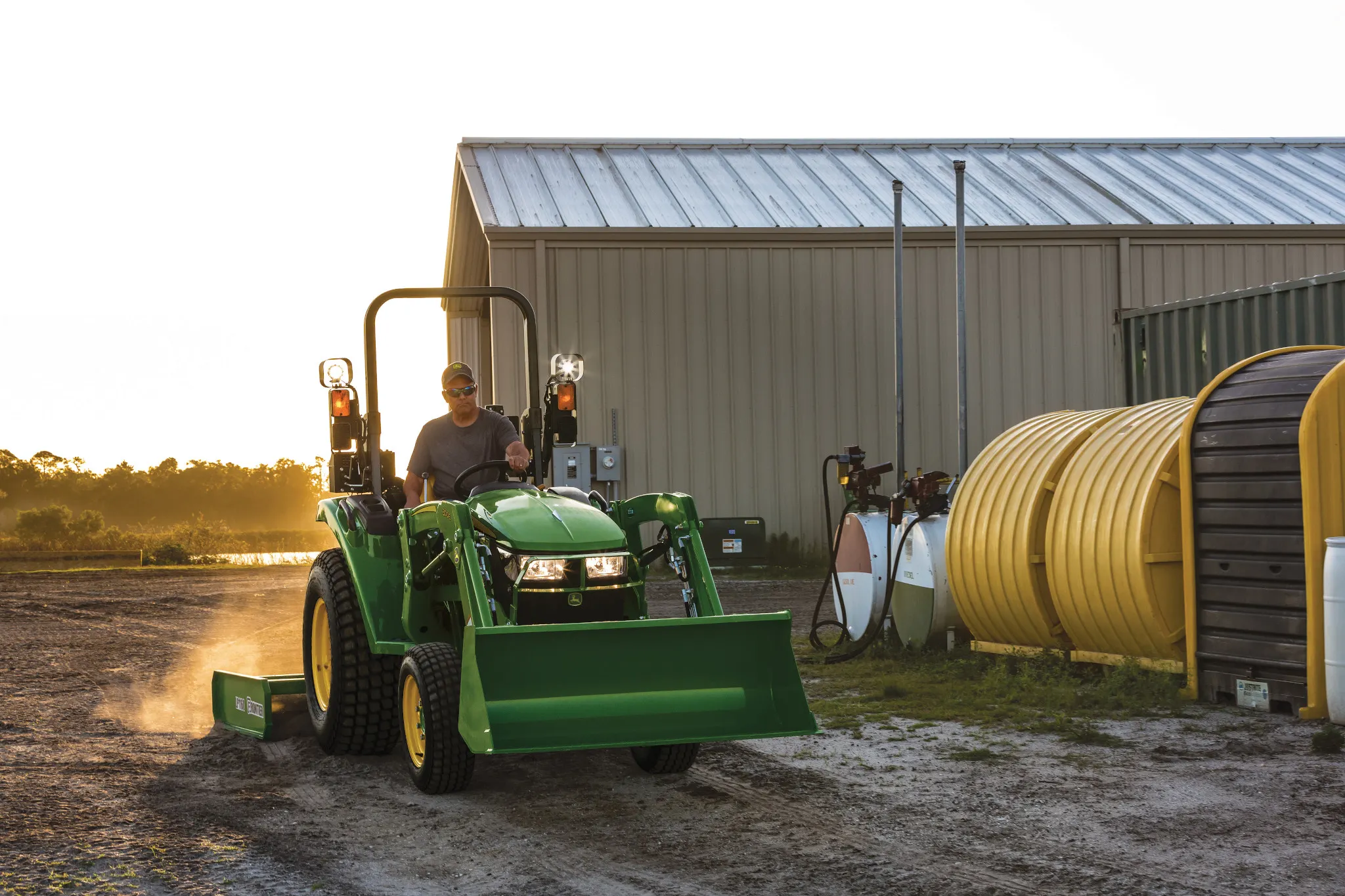

An operator on a green tractor with a front loader and rear land plane drives on a dirt path beside a metal building, with large tanks and equipment nearby at sunset

John Deere 3025D

Compact Tractor

Get dependable power with the 3025D Compact Utility Tractor. The efficient engine handles mowing, loading, and light grading with ease. Durable construction and user-friendly operation keep you working productively season after season.

Product Features:

4WD for Maximum Traction
Heavy-Duty Drive Train With a Gear Drive Transmission 8F/8R
Hydrostatic Power Steering
Versatile Hitch and PTO

View Product Broshure

Features

4WD for Maximum Traction

Heavy-Duty Drive Train With a Gear Drive Transmission 8F/8R

Hydrostatic Power Steering

Versatile Hitch and PTO

Benefits

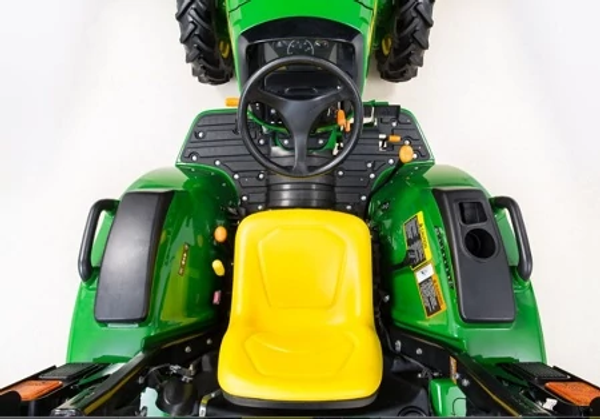

Top studio view of a 3-series compact utility tractor's clean, simple operator's station (seat, steering wheel, arms, back of front tires)

Clean and Simple Operator Station

The 3D operator station is designed to keep operation comfortable, simple, and intuitive throughout the workday. An easy step‑through layout and thoughtfully placed controls support confident operation and reduce unnecessary effort when getting on and off. The clean, practical design helps you stay focused on the task at hand without added complexity.

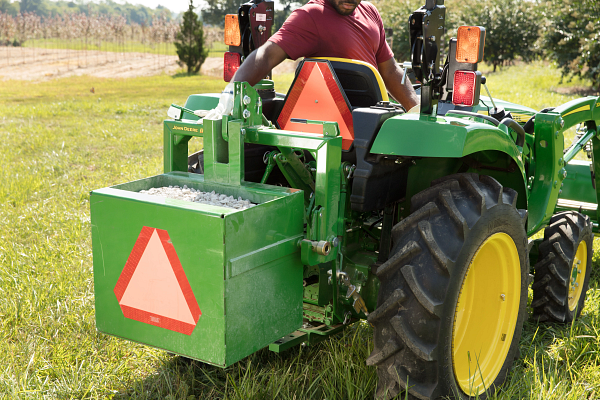

Rear right view of a 3025D Tractor in an orchard with an operator in a red shirt reaching toward the rear box attachment

Optional iMatch™ Quick-Hitch Feature

John Deere’s iMatch™ Quick-Hitch simplifies implement attachment by ensuring a guaranteed fit for all ASABE Category 1-compatible tools, using included bushings to align implement pins with hitch hooks.

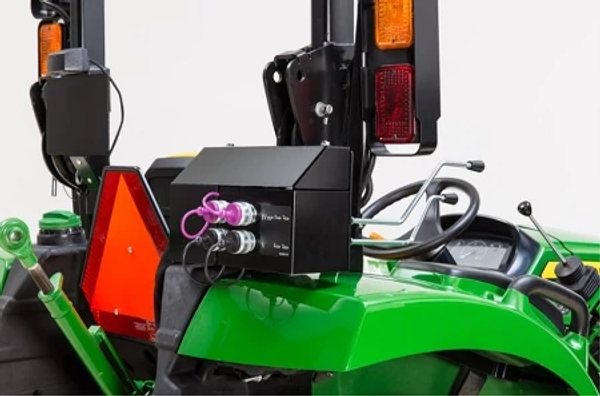

Optional Two-Spool Rear Selective Control Valve (SCV)

3D Series Tractors can be upgraded with a rear hydraulic remote kit that adds two independent hydraulic spools, enabling compatibility with various rear attachments like angled blades and snow blowers. The first spool includes a float position for better landscape contouring and grading precision.

Specifications

Engine Model	3TNV88F-EPJPT
Air Cleaner Type	Dual element
Rated Engine Power	18 kW
Lubrication	Pressurized
Cylinder Liners	Cast-in-block
Rated Engine Speed	2400 rpm
Compression Ratio	19.1:1
Rated Engine Power	25 PS
Fuel Type	Diesel
Displacement	100 cu in.
Aspiration	Natural
Emissions Certifications	Final Tier 4
Cooling System Type	Liquid
Rated Engine Power	24 hp (SAE J1995)
Number of Cylinders	3

Number of Rear Selective Control Valves (SCVs)	2
Hydraulic System Type	Open center

PTO Clutch	Transmission
Brake (For Mid and Rear PTO)	Wet disk
PTO Category	540 rpm
Engine rpm at Rated PTO Speeds (540/1.000)	2400
Engagement Method	Mechanical

Final Drive	Spur gear

Wheel or Track Configuration	Wheel
Drive Type	4WD

Front Tires Size	R1 Bar: 7-14 R3; Turf: 27x8.5-15 R4; Industrial: 25x8.5-14

Primary Brakes	Wet disk

Draft Control Sensing	Position control

Alternator Capacity	55 amp

Gearshift Location	Right-hand side

Cruise Control	No
Creeper	No
