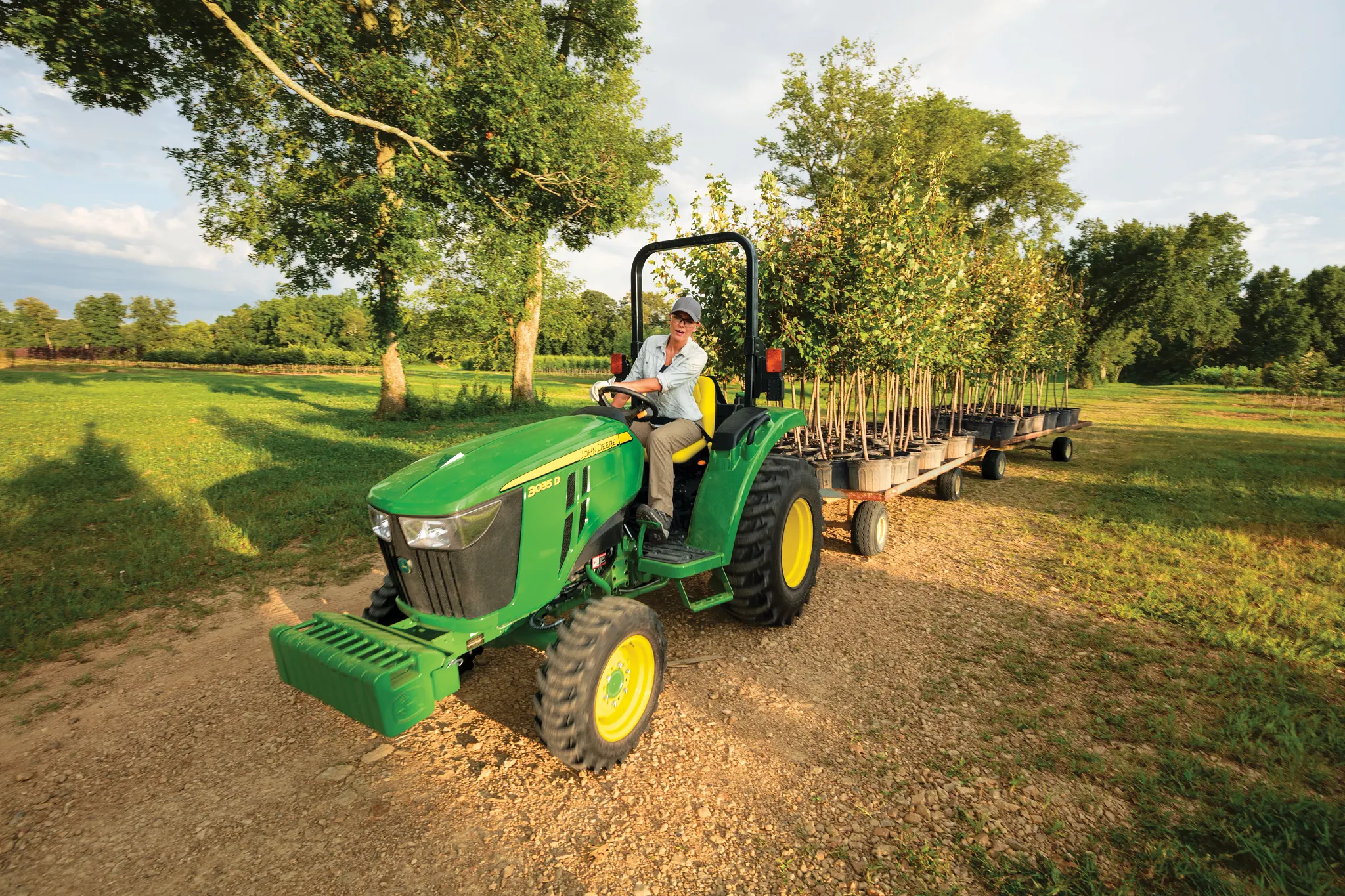

Green tractor driven along a dirt path through a grassy rural field, pulling flatbed trailers loaded with small trees, with scattered trees and soft sunlight in the background

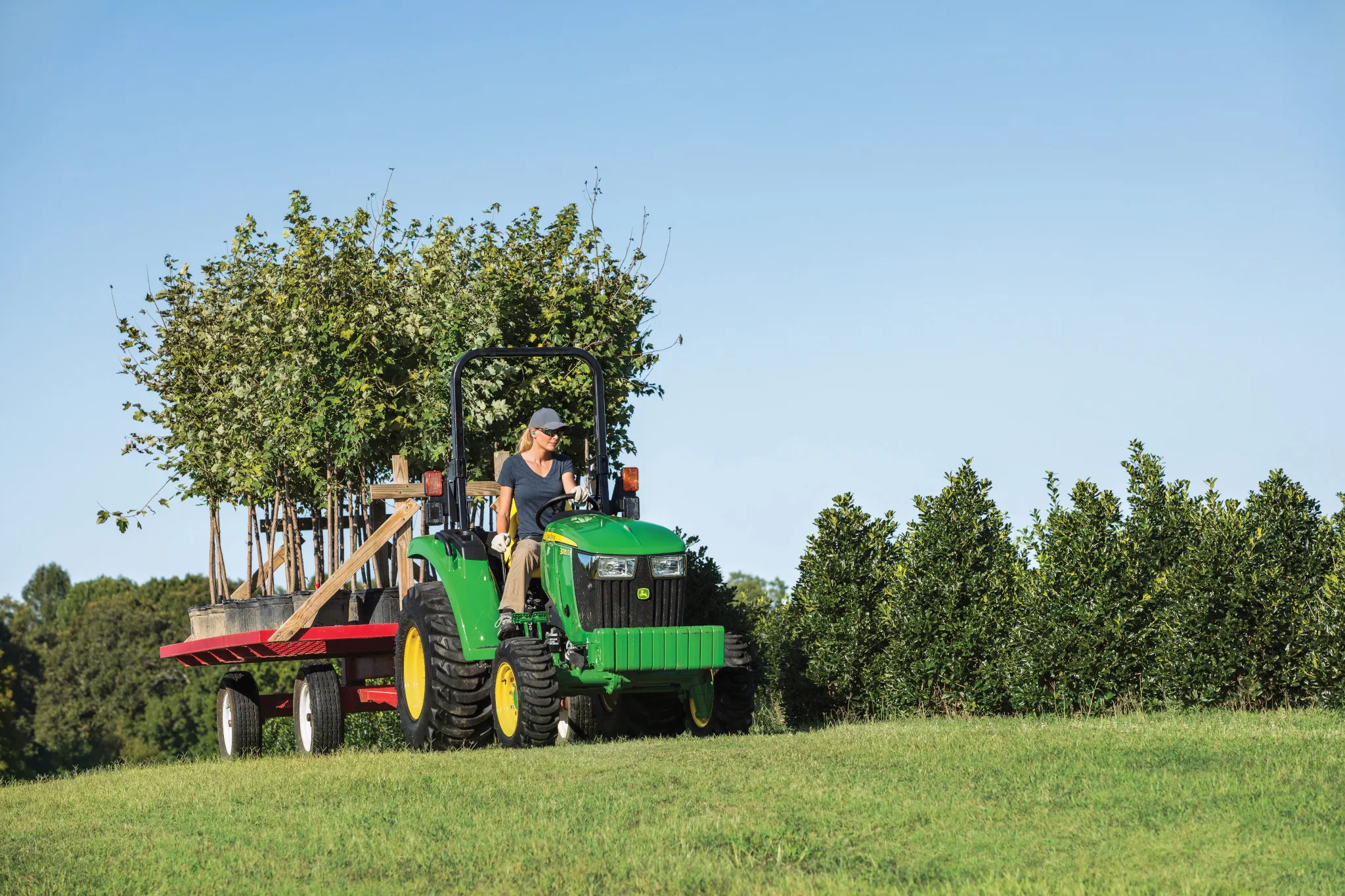

A green tractor driven across a grassy hill in an orchard pulls a trailer loaded with upright trees, with rows of dense greenery and a clear blue sky in the background

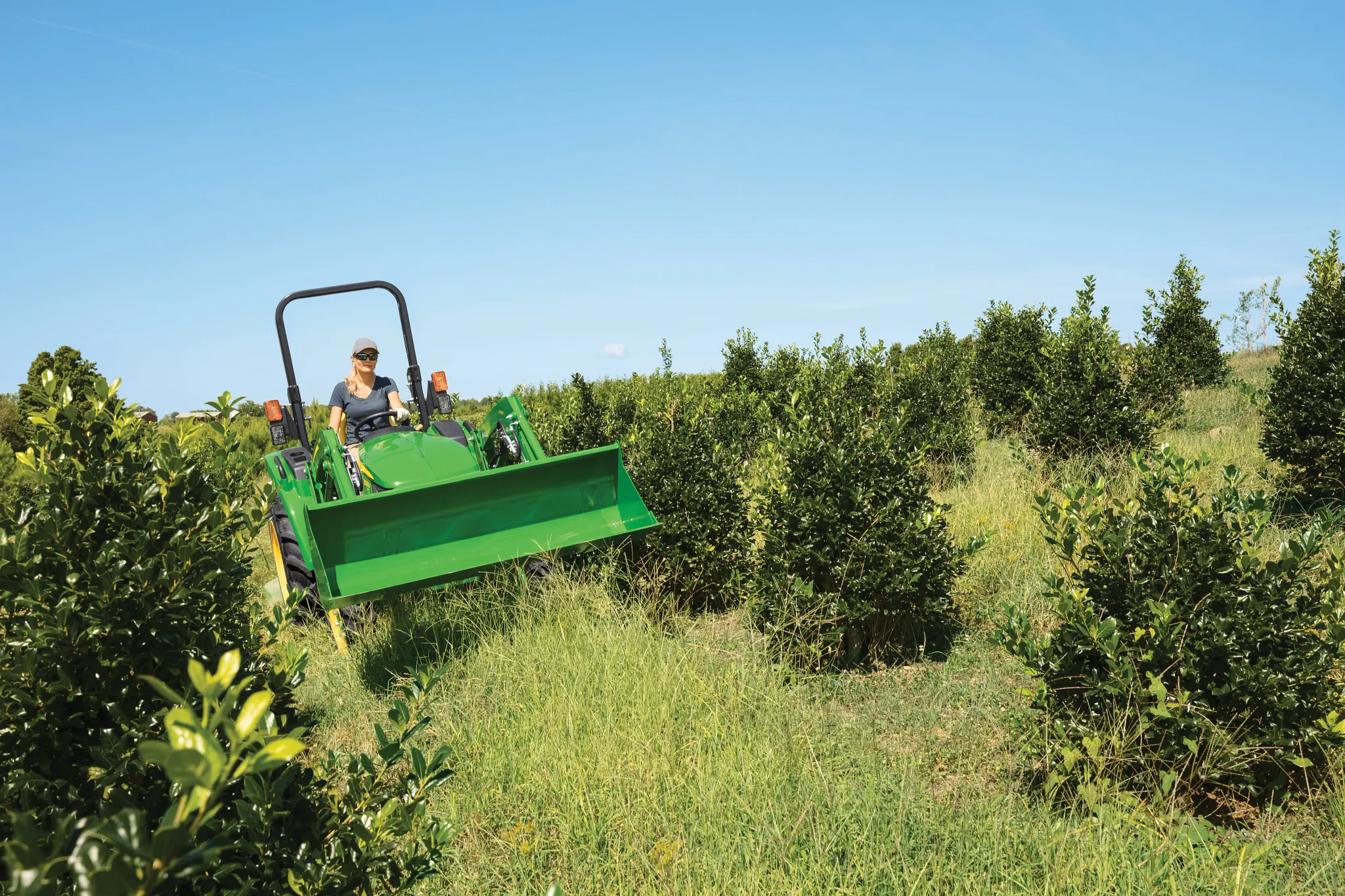

A person on a green tractor with a front loader drives through a grassy orchard with rows of small trees under a clear blue sky

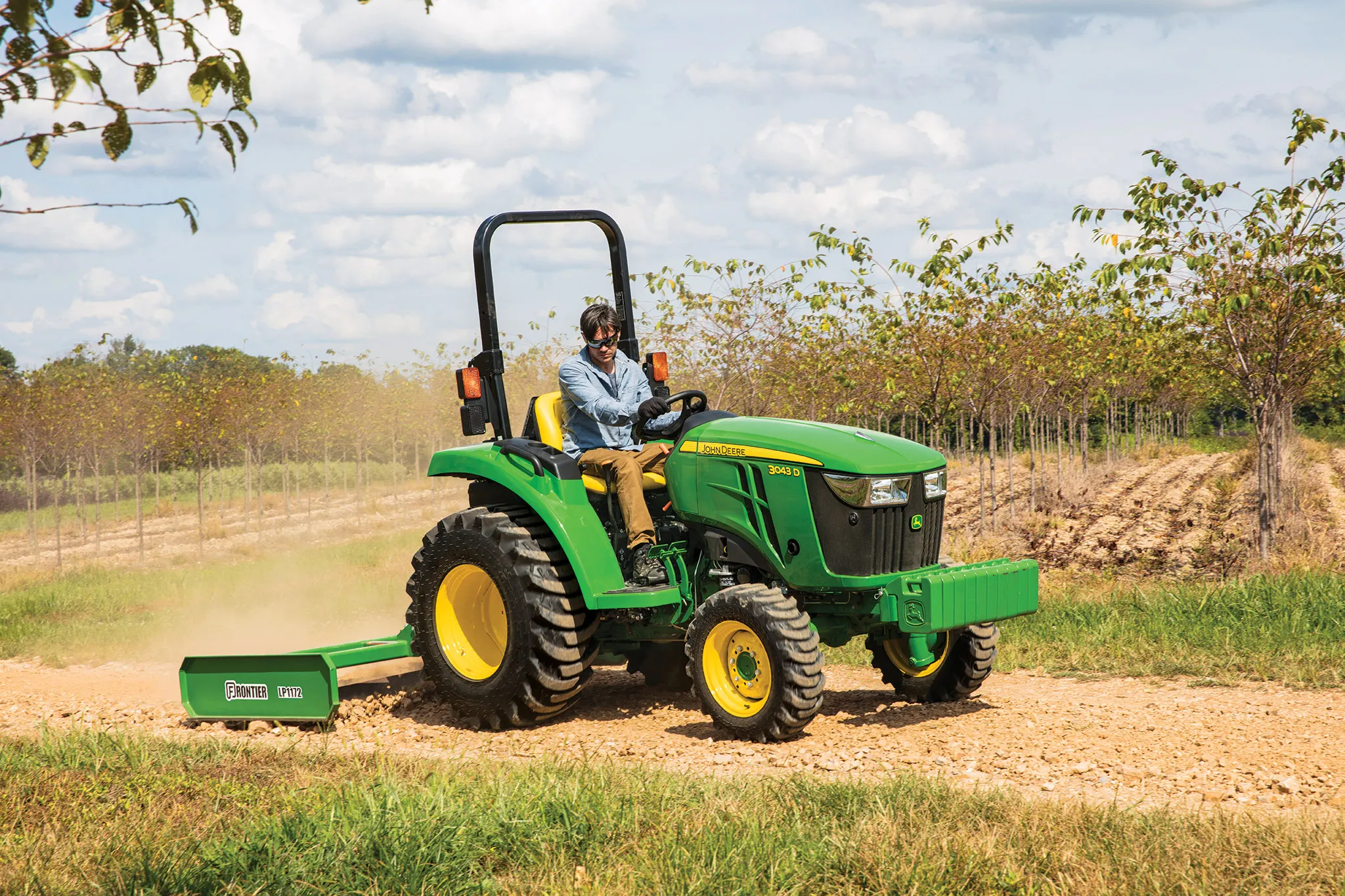

A person drives a green tractor pulling a land plane attachment along a dirt path beside rows of trees under a partly cloudy sky

John Deere 3035D

Compact Tractor

Experience reliable power with the 3035D Compact Tractor. Easy operation helps you move between loader work, mowing, and material handling without missing a beat. Built for operators who value reliability and versatility.

Product Features:

4WD for Maximum Traction
Heavy-Duty Drive Train With a Gear Drive Transmission 8F/8R
Hydrostatic Power Steering
Wet-Disk Brakes for Strong Stopping Power

View Product Broshure

Features

4WD for Maximum Traction

Heavy-Duty Drive Train With a Gear Drive Transmission 8F/8R

Hydrostatic Power Steering

Wet-Disk Brakes for Strong Stopping Power

Benefits

Optional Two-Spool Rear Selective Control Valve (SCV)

3D Series Tractors can be upgraded with a rear hydraulic remote kit that adds two independent hydraulic spools, enabling compatibility with various rear attachments like angled blades and snow blowers. The first spool includes a float position for better landscape contouring and grading precision.

Top studio view of a 3-series compact utility tractor's clean, simple operator's station (seat, steering wheel, arms, back of front tires)

Clean and Simple Operator Station

The 3D operator station is designed to keep operation comfortable, simple, and intuitive throughout the workday. An easy step‑through layout and thoughtfully placed controls support confident operation and reduce unnecessary effort when getting on and off. The clean, practical design helps you stay focused on the task at hand without added complexity.

Rear right view of a 3025D Tractor in an orchard with an operator in a red shirt reaching toward the rear box attachment

Optional iMatch™ Quick-Hitch Feature

John Deere’s iMatch™ Quick-Hitch simplifies implement attachment by ensuring a guaranteed fit for all ASABE Category 1-compatible tools, using included bushings to align implement pins with hitch hooks.

Specifications

Engine Model	3TNV88C-KJPT
Air Cleaner Type	Dual element
Rated Engine Power	26 kW
Lubrication	Pressurized
Cylinder Liners	Cast-in-block
Rated Engine Speed	2800 rpm
Compression Ratio	19.1:1
Rated Engine Power	35 PS
Fuel Type	Diesel
Displacement	100 cu in.
Aspiration	Natural
Emissions Certifications	Final Tier 4
Cooling System Type	Liquid
Rated Engine Power	34 hp (SAE J1995)
Number of Cylinders	3

Number of Rear Selective Control Valves (SCVs)	2
Hydraulic System Type	Open center

PTO Clutch	Transmission
Brake (For Mid and Rear PTO)	Wet disk
PTO Category	540 rpm
Engine rpm at Rated PTO Speeds (540/1.000)	2400
Engagement Method	Mechanical

Final Drive	Spur gear

Wheel or Track Configuration	Wheel
Drive Type	4WD

Front Tires Size	R1 Bar: 7-14 R3; Turf: 27x8.5-15 R4; Industrial: 25x8.5-14

Primary Brakes	Wet disk

Draft Control Sensing	Position control

Alternator Capacity	55 amp

Gearshift Location	Right-hand side

Cruise Control	No
Creeper	No
