Front left studio view of 3032E Compact Tractor

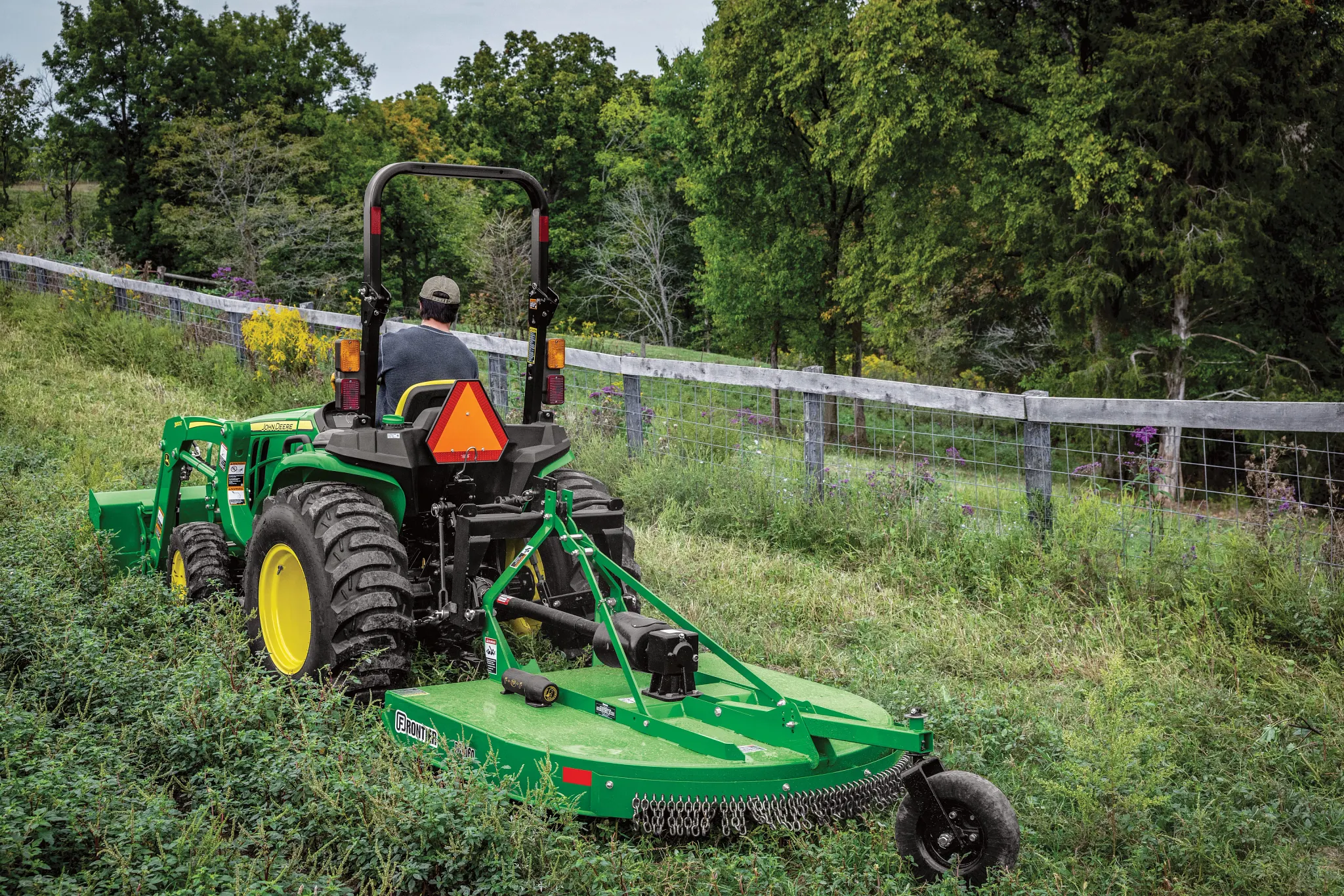

An operator on a green tractor with a rear-mounted mower cuts grass in a sloped field, with a wire fence and dense trees lining the background in a rural setting

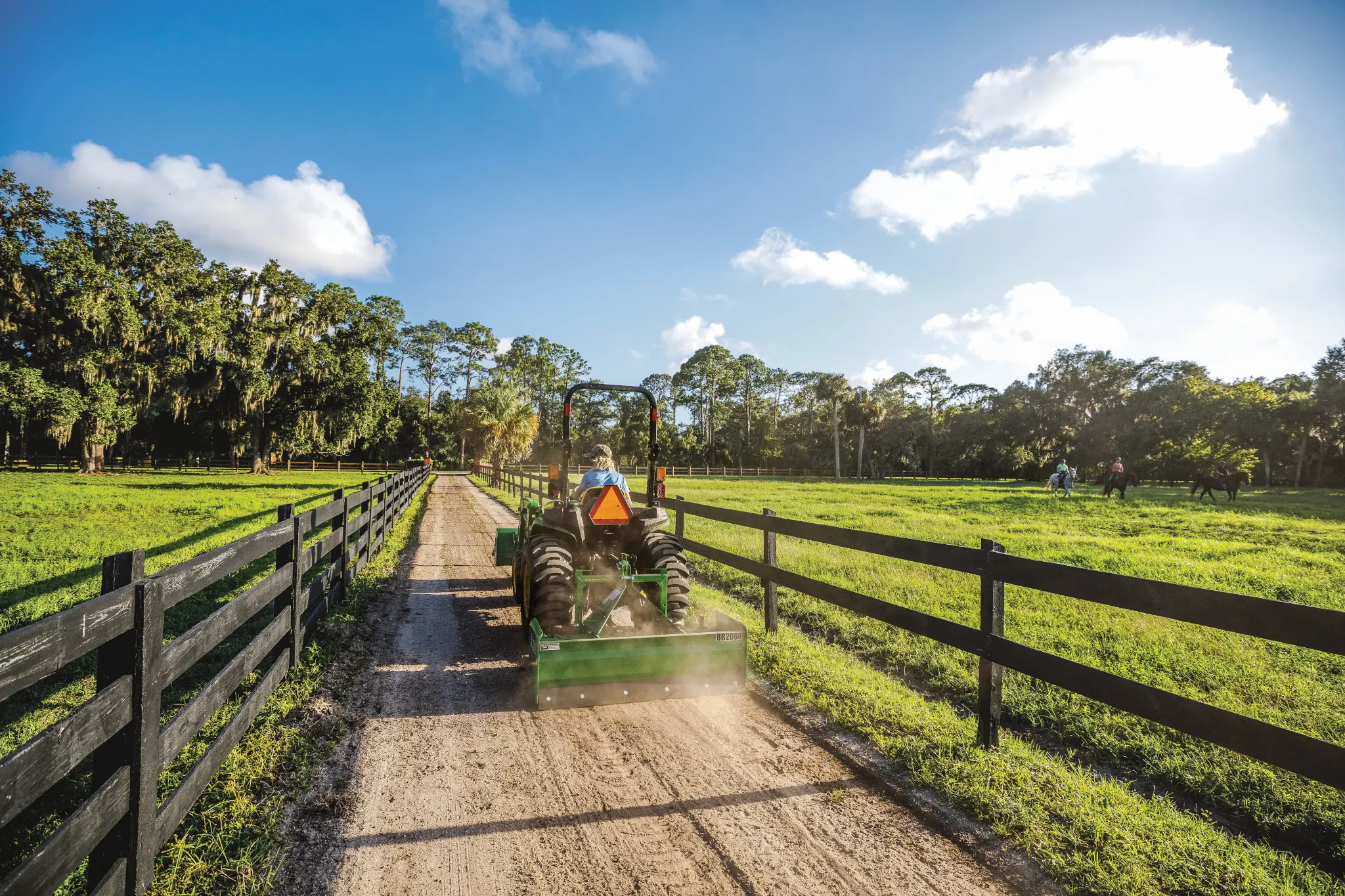

A green tractor levels a dirt lane between wooden fences with a rear land plane, with open grassy fields and trees on both sides under a bright blue sky with scattered clouds

John Deere 3032E

Compact Tractor

Handle more with the 3032E Compact Utility Tractor. The Yanmar diesel engine and hydrostatic transmission give you smooth, responsive power, while Quick Connect compatibility lets you swap implements quickly for mowing, loader work, and ground engagement tasks. Versatile, reliable, and ready for your property.

Product Features:

4WD for Maximum Traction
Hydrostatic Transmission With TwinTouch™ Pedals
Versatile Category 1 3-Point Hitch
Independent Rear PTO Function

View Product Broshure

Features

4WD for Maximum Traction

Hydrostatic Transmission With TwinTouch™ Pedals

Versatile Category 1 3-Point Hitch

Independent Rear PTO Function

Benefits

Studio close-up of a 3E tractor's Twin Touch foot controls

Easy-to-Use Hydrostatic Transmission

The 3E Tractors feature a hydrostatic transmission (HST) for superior performance. It provides infinite ground speeds that let operators easily match their speed to the task at hand. The Twin Touch™ foot pedals make forward and reverse motion effortless, enhancing operator comfort and control.

Top view of a 3E tractor's operator's station with optional selective control valve (SCV) levers

Comfortable Operator Station

Operators will appreciate the uncluttered design of the operator station, promoting comfort with color-coded controls and a contoured seat that adjusts for an optimal fit. The flat platform ensures easy entry and exit.

John Deere compact tractor with front loader and rear rotary cutter mowing a grassy field, operator seated under ROPS, yellow wheels and green body visible, with a barn and open farmland in the background.

More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Specifications

Engine Make	John Deere
Engine Model	3TNV88C-NJT2
Air Cleaner Type	Dual element
Engine Family	EYDXL1.64NDA, FYDXL1.64NDA, GYDXL1.64NDA
Rated Engine Power	23 kW
Lubrication	Pressurized
Cylinder Liners	Cast-in-block
Rated Engine Speed	2500 rpm
Compression Ratio	19.1:1
Rated Engine Power	31 PS
Fuel Type	Diesel
Displacement	100 cu in.
Aspiration	Natural
Emissions Certifications	Final Tier 4
Cooling System Type	Water pump
Rated Engine Power	31 hp (SAE J1995)
Number of Cylinders	3

Number of Rear Selective Control Valves (SCVs)	2
Hydraulic System Type	Open center

PTO Clutch	Wet disk
Brake (For Mid and Rear PTO)	Wet disk
PTO Category	540 rpm
Engine rpm at Rated PTO Speeds (540/1.000)	2500
Engagement Method	Independent

Final Drive	Spur gear

Wheel or Track Configuration	Wheel
Drive Type	4WD

Front Tires Size	R1 Bar: 7-14; R3 Turf: 27x8.5-15; R4 Industrial: 25x8.5-14 / 27x8.5-15

Primary Brakes	Wet disk

Draft Control Sensing	Position control

Alternator Capacity	55 amp

Gearshift Location	Left-hand side

Cruise Control	Optional
Creeper	No
