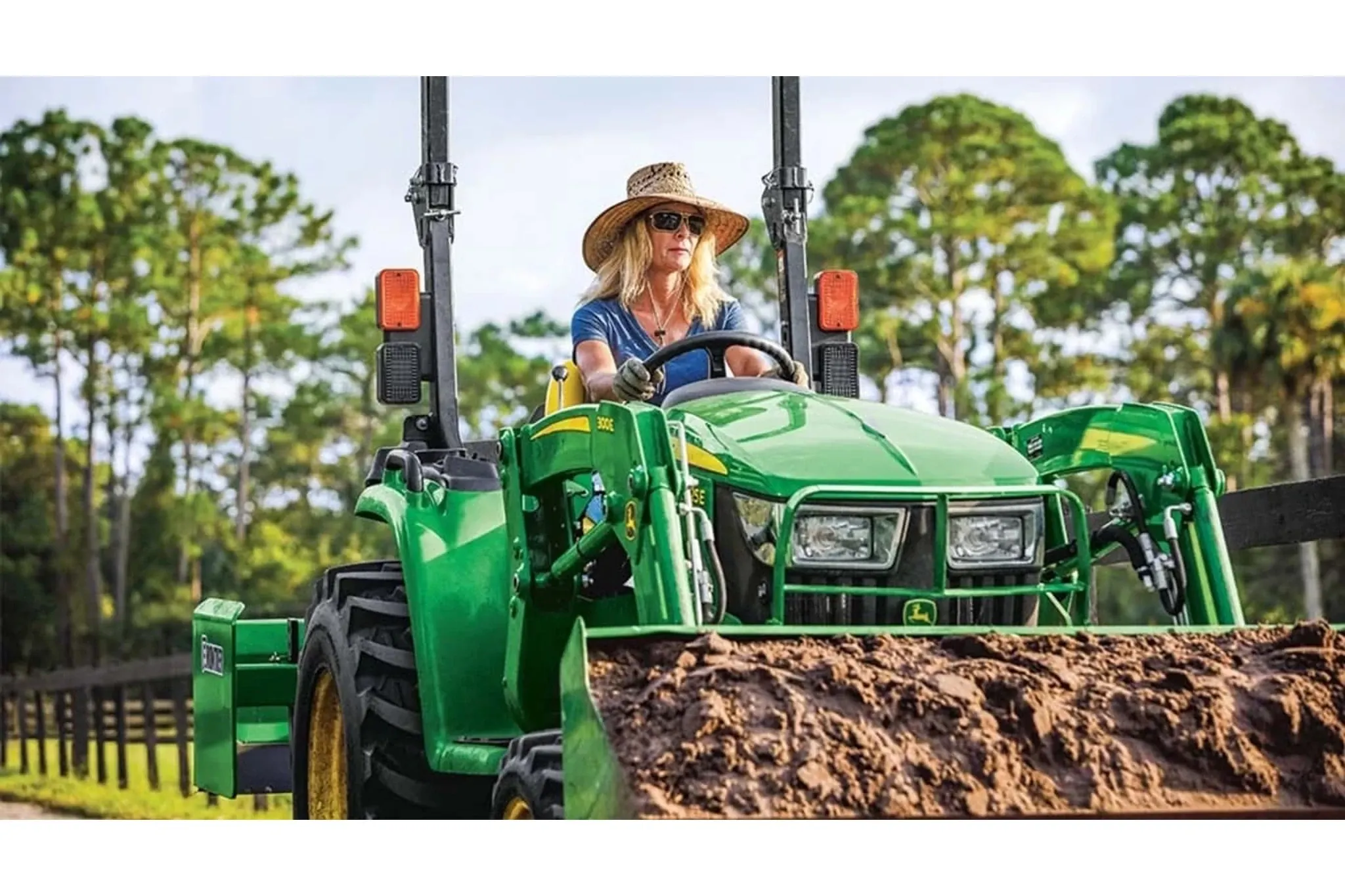

3025E 3 Series Compact Tractors with an operator driving a tractor in a field with a large pile of dirt

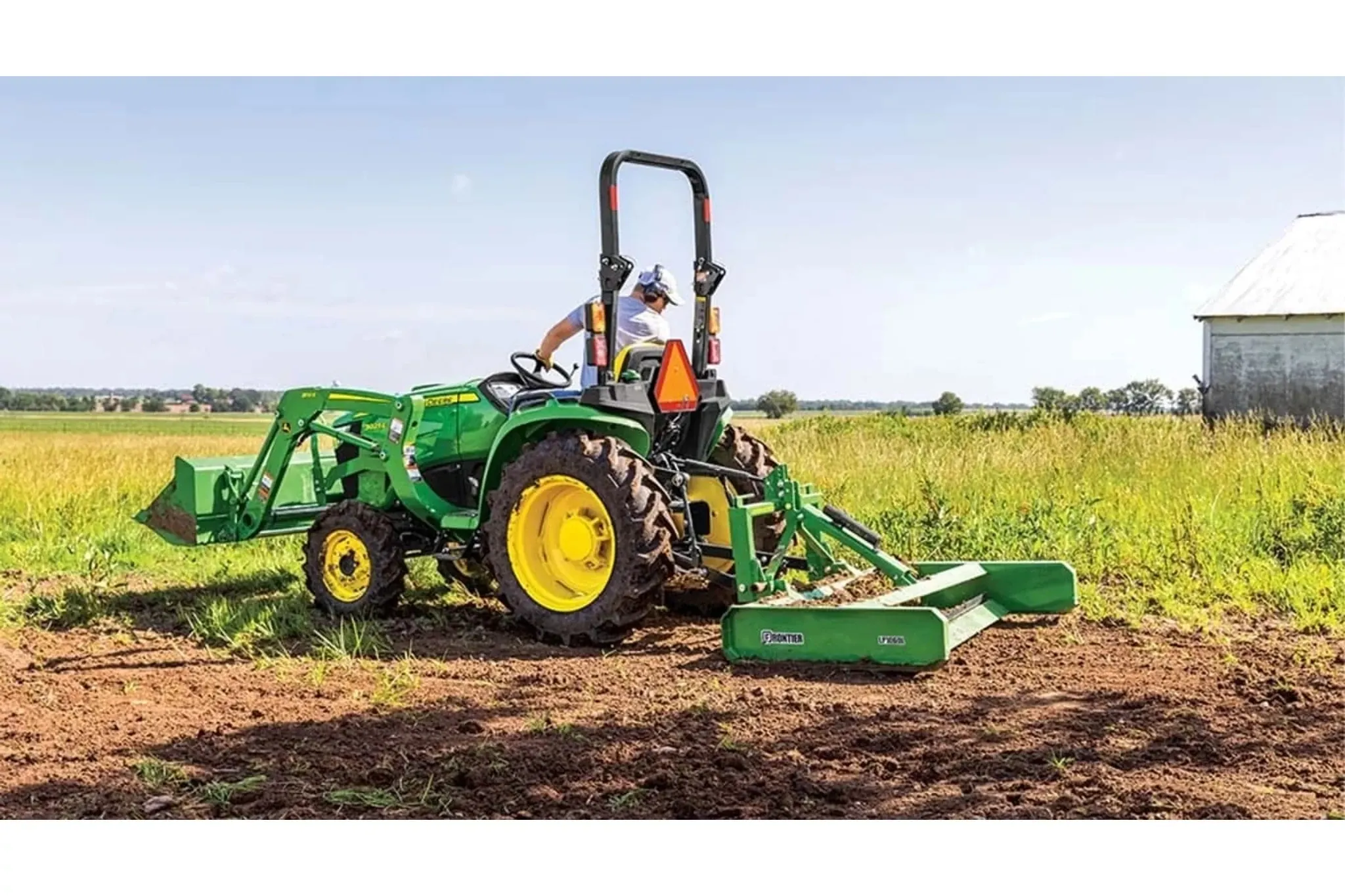

3025E 3 Series Compact Tractors with a farmer is driving a tractor with a plow attachment

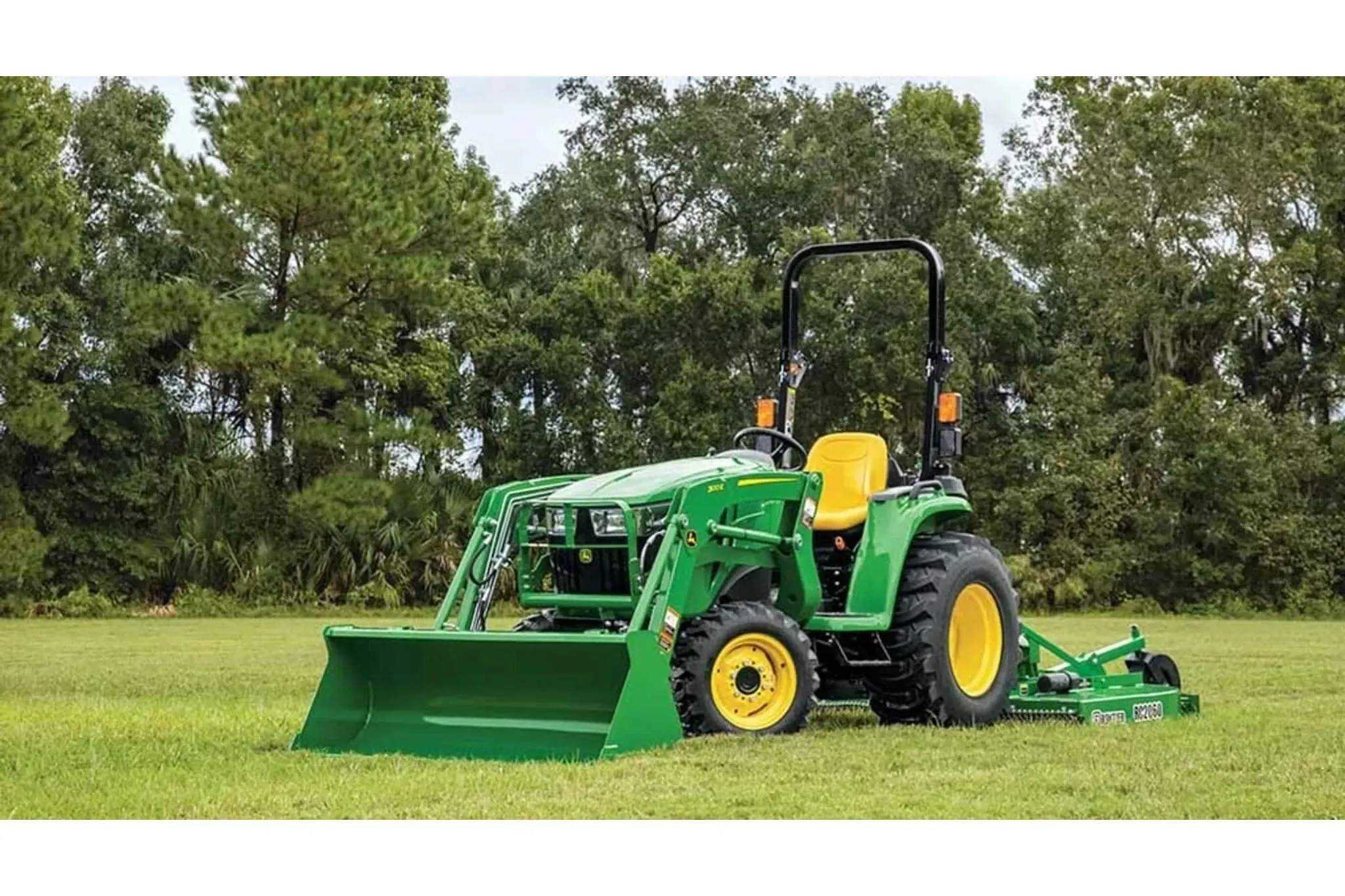

3025E 3 Series Compact Tractors with a green tractor with a plow attachment in a field

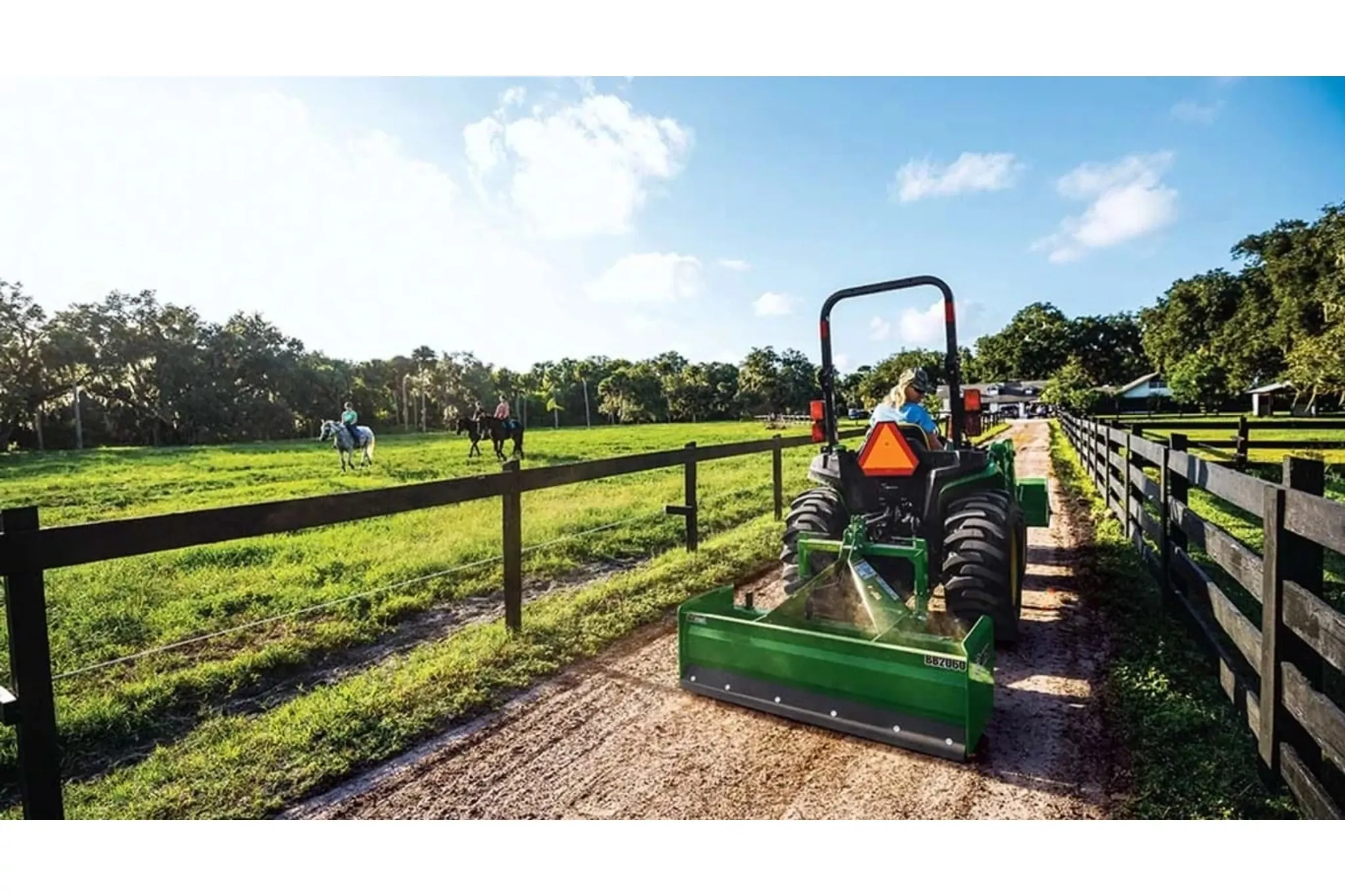

3025E 3 Series Compact Tractors with there is a tractor that is parked in a field

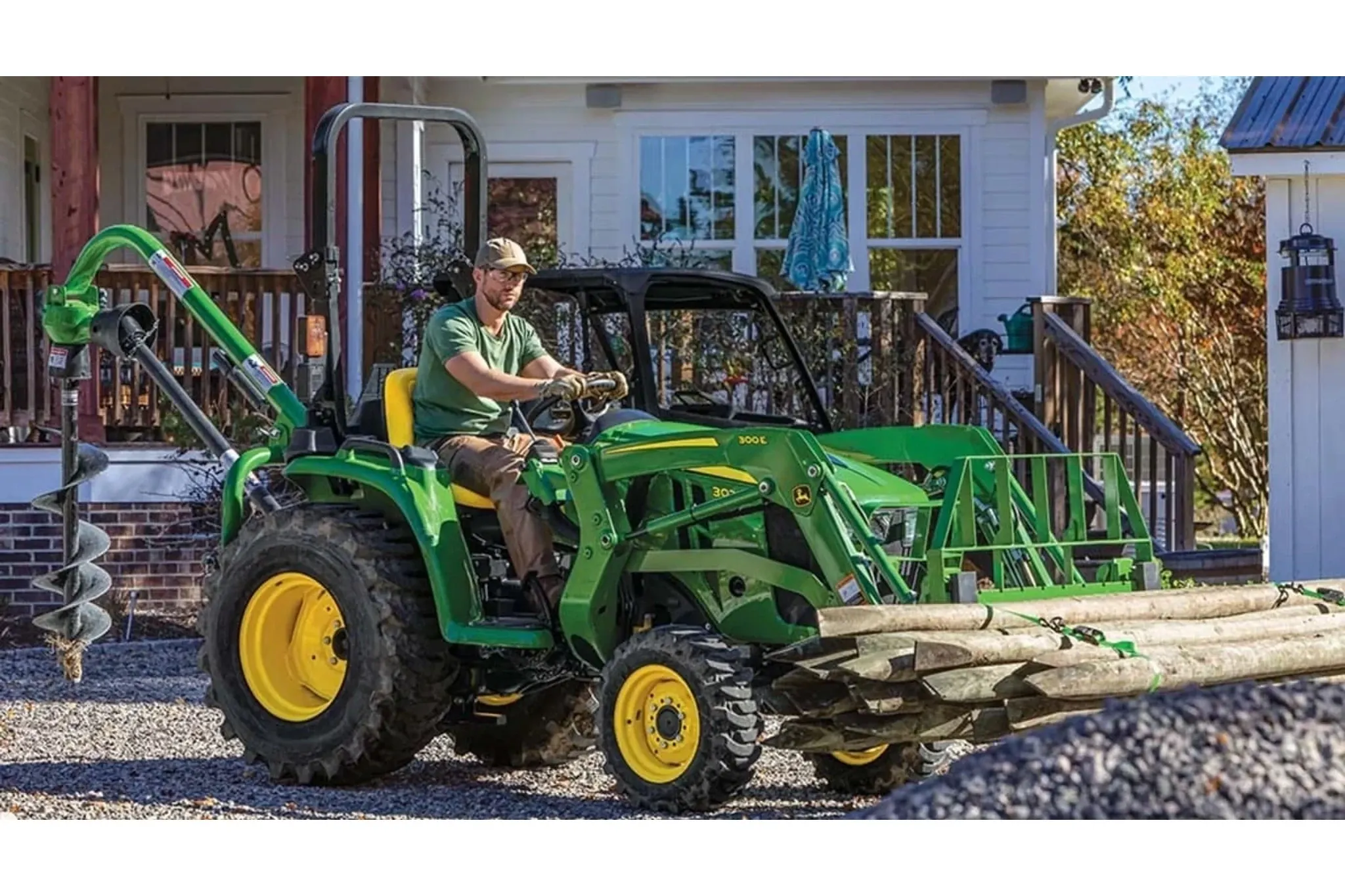

3025E 3 Series Compact Tractors with a farmer driving a tractor with a log loader attached to it

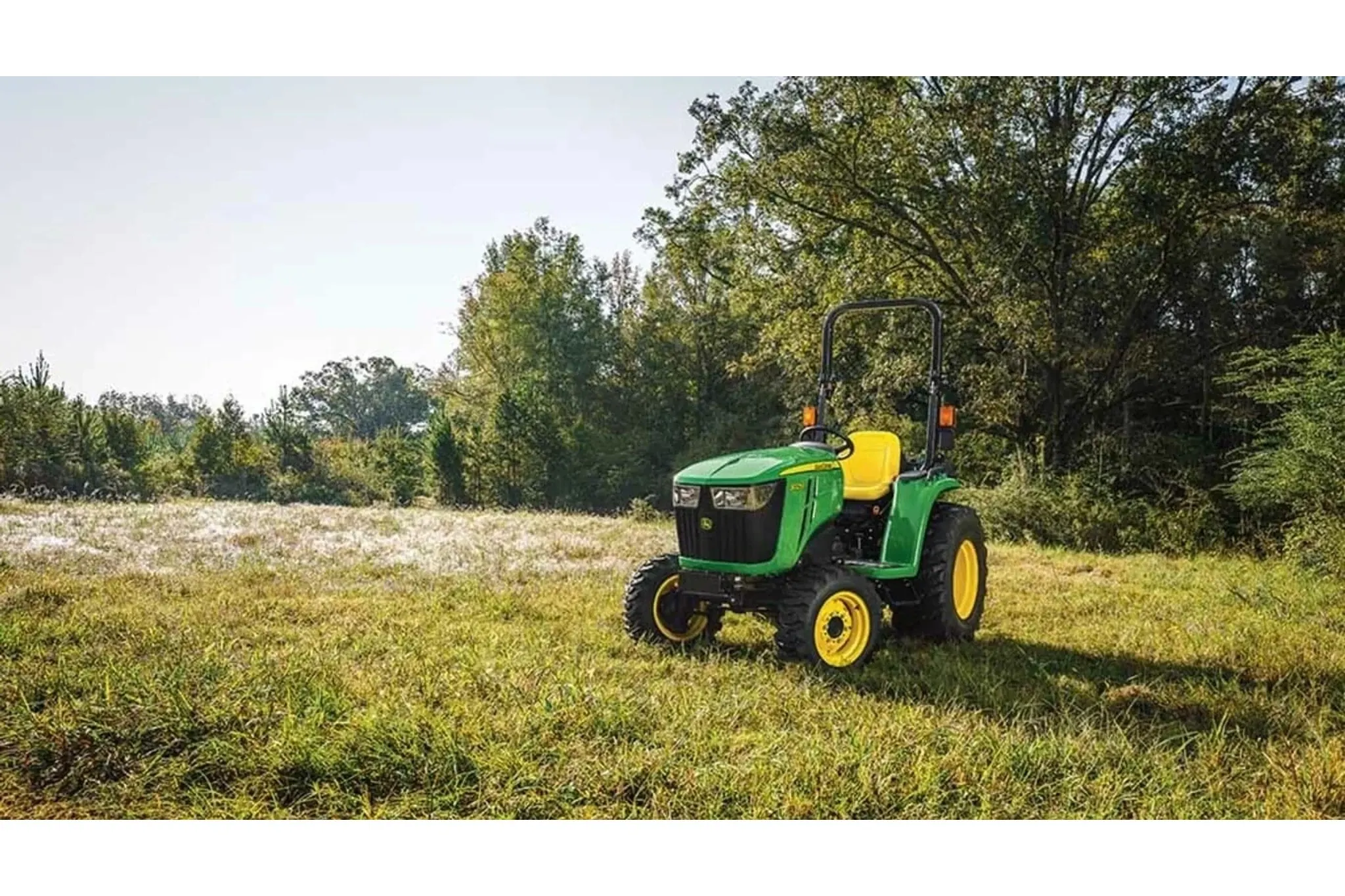

3025E 3 Series Compact Tractors with a green tractor parked in a field with trees in the background

John Deere 3025E

Compact Tractor

Start getting more done on your property with the 3025E Compact Utility Tractor. Reliable performance and Quick Connect implement compatibility make switching between mowing, loading, and grading fast and easy, no tools required. A practical choice for property owners ready to tackle a wide range of tasks efficiently.

Product Features:

4WD for Maximum Traction
Tightest Turning Radius in Horsepower Class
Hydrostatic Transmission With Twin Touch™ Pedals
Independent Rear PTO

View Product Broshure

Features

4WD for Maximum Traction

Tightest Turning Radius in Horsepower Class

Hydrostatic Transmission With Twin Touch™ Pedals

Independent Rear PTO

Benefits

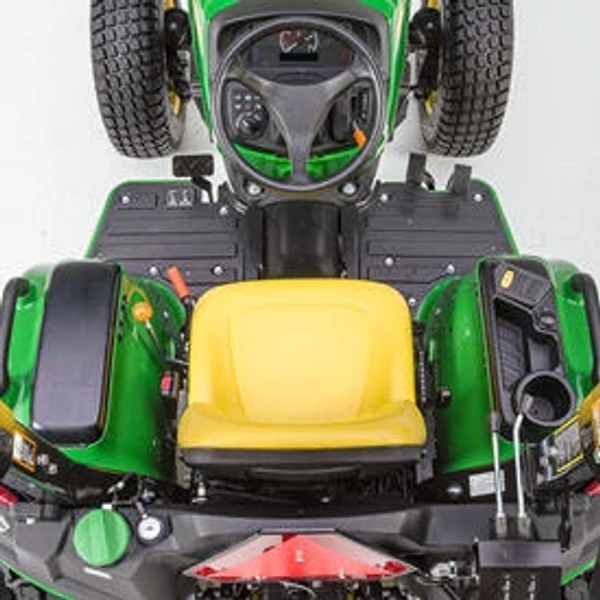

Top view of a 3E tractor's operator's station with optional selective control valve (SCV) levers

Comfortable Operator Station

Operators will appreciate the uncluttered design of the operator station, promoting comfort with color-coded controls and a contoured seat that adjusts for an optimal fit. The flat platform ensures easy entry and exit.

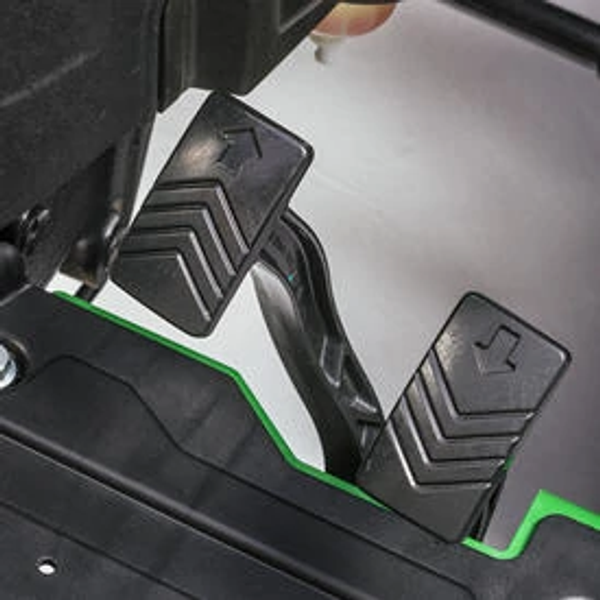

Studio close-up of a 3E tractor's Twin Touch foot controls

Easy-to-Use Hydrostatic Transmission

The 3E Tractors feature a hydrostatic transmission (HST) for superior performance. It provides infinite ground speeds that let operators easily match their speed to the task at hand. The Twin Touch™ foot pedals make forward and reverse motion effortless, enhancing operator comfort and control.

John Deere compact tractor with front loader and rear rotary cutter mowing a grassy field, operator seated under ROPS, yellow wheels and green body visible, with a barn and open farmland in the background.

More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Specifications

Engine Model	3TNV88F-EPJT2
Air Cleaner Type	Dual element
Engine Family	EYDXL1.64NDA, FYDXL1.64NDA, GYDXL1.64NDA
Rated Engine Power	18 kW
Lubrication	Pressurized
Cylinder Liners	Cast-in-block
Rated Engine Speed	2400 rpm
Compression Ratio	19.1:1
Rated Engine Power	25 PS
Fuel Type	Diesel
Displacement	100 cu in.
Aspiration	Natural
Emissions Certifications	Final Tier 4
Cooling System Type	Water pump
Rated Engine Power	24 hp (SAE J1995)
Number of Cylinders	3

Number of Rear Selective Control Valves (SCVs)	2
Hydraulic System Type	Open center

PTO Clutch	Wet disk
Brake (For Mid and Rear PTO)	Wet disk
PTO Category	540 rpm
Engagement Method	Independent

Final Drive	Spur gear

Wheel or Track Configuration	Wheel
Drive Type	4WD

Front Tires Size	R1 Bar: 7-14; R3 Turf: 27x8.5-15; R4 Industrial: 25x8.5-14 / 27x8.5-15

Primary Brakes	Wet disk

Draft Control Sensing	Position control

Alternator Capacity	55 amp

Gearshift Location	Left-hand side

Cruise Control	Optional
Creeper	No
